54FCT533 Octal Transparent Latch with TRI-STATE Outputs
September 1998
54FCT533
Octal Transparent Latch with TRI-STATE
廬
Outputs
General Description
The FCT533 consists of eight latches with TRI-STATE out-
puts for bus organized system applications. The flip-flops ap-
pear transparent to the data when Latch Enable (LE) is
HIGH. When LE is low, the data satisfying the input timing re-
quirements is latched. Data appears on the bus when the
Output Enable (OE) is LOW. When OE is HIGH, the bus out-
put is in the high impedance state.
Features
Eight latches in a single package
TTL input and output level compatible
CMOS power consumption
TRI-STATE outputs drive bus lines or buffer memory
address registers
n
Output sink capability of 32mA, source capability of 12
mA
n
Inverted version of the FCT373
n
Standard Microcircuit Drawing (SMD) 5962-8865101
n
n
n
n

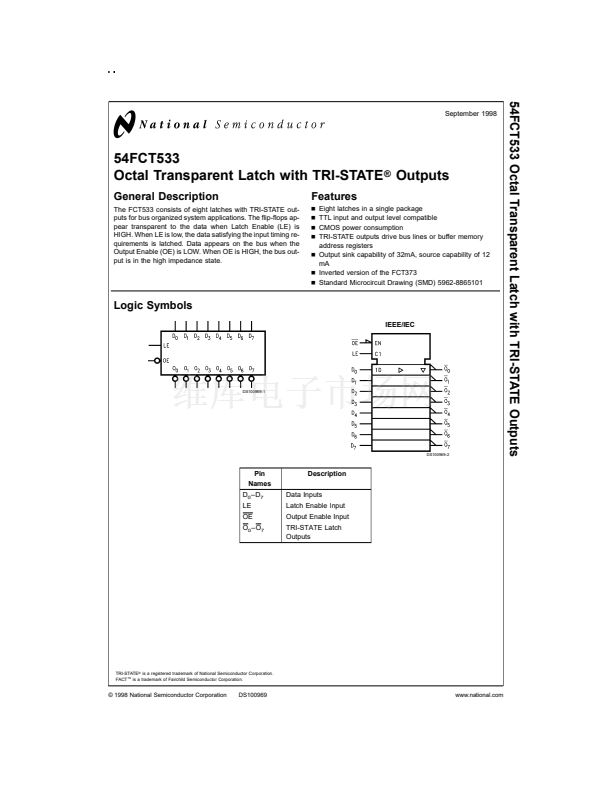

Logic Symbols
IEEE/IEC
DS100969-1
DS100969-2
Pin
Names
D
0
鈥揇
7
LE
OE
O
0
鈥揙
7
Description
Data Inputs
Latch Enable Input
Output Enable Input
TRI-STATE Latch
Outputs
TRI-STATE
廬
is a registered trademark of National Semiconductor Corporation.
FACT
鈩?/div>
is a trademark of Fairchild Semiconductor Corporation.
漏 1998 National Semiconductor Corporation
DS100969
www.national.com
