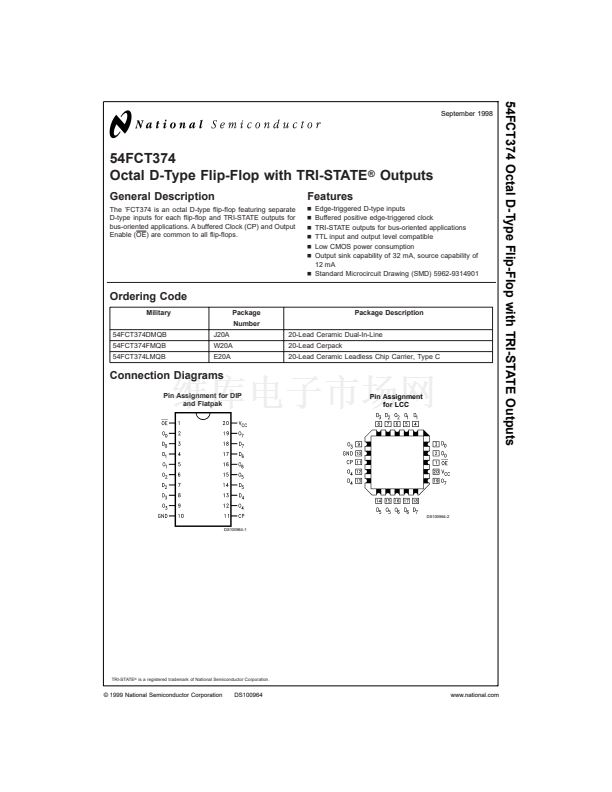

54FCT374 Octal D-Type Flip-Flop with TRI-STATE Outputs

September 1998

54FCT374

Octal D-Type Flip-Flop with TRI-STATE

廬

Outputs

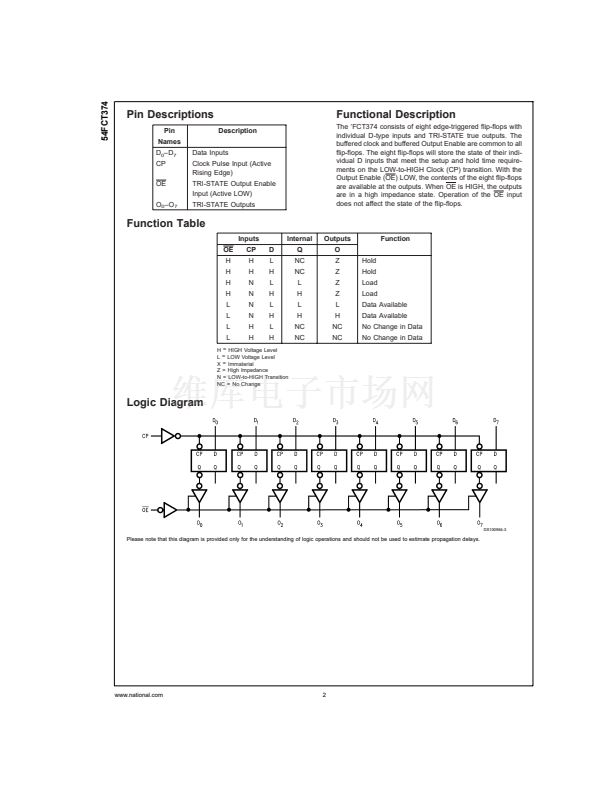

General Description

The 鈥橣CT374 is an octal D-type flip-flop featuring separate

D-type inputs for each flip-flop and TRI-STATE outputs for

bus-oriented applications. A buffered Clock (CP) and Output

Enable (OE) are common to all flip-flops.

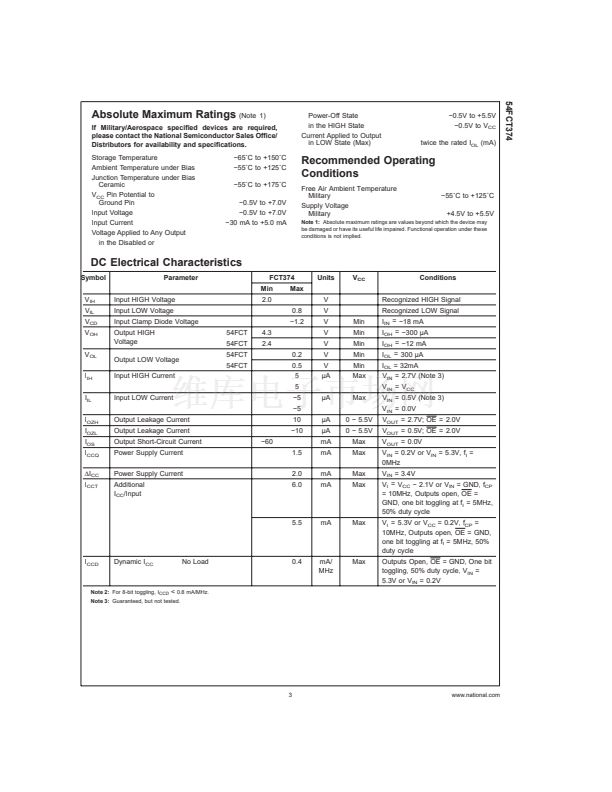

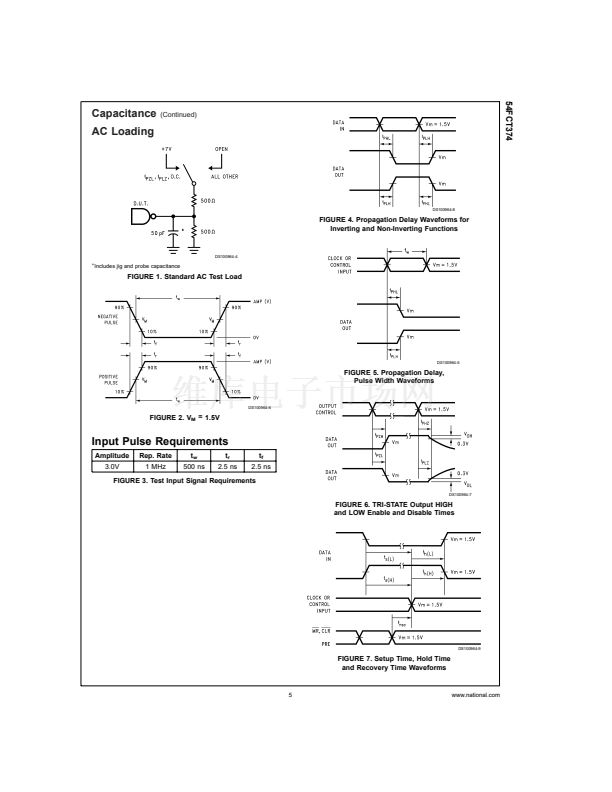

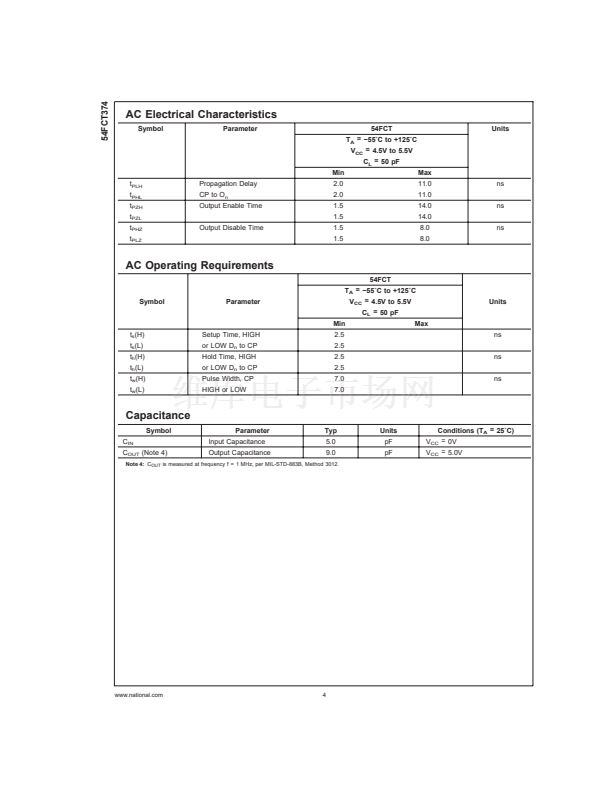

Features

Edge-triggered D-type inputs

Buffered positive edge-triggered clock

TRI-STATE outputs for bus-oriented applications

TTL input and output level compatible

Low CMOS power consumption

Output sink capability of 32 mA, source capability of

12 mA

n

Standard Microcircuit Drawing (SMD) 5962-9314901

n

n

n

n

n

n

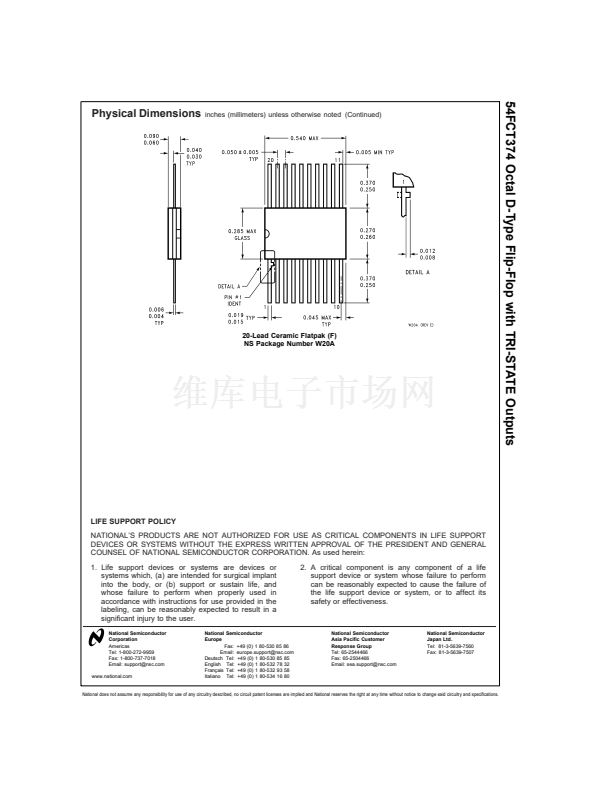

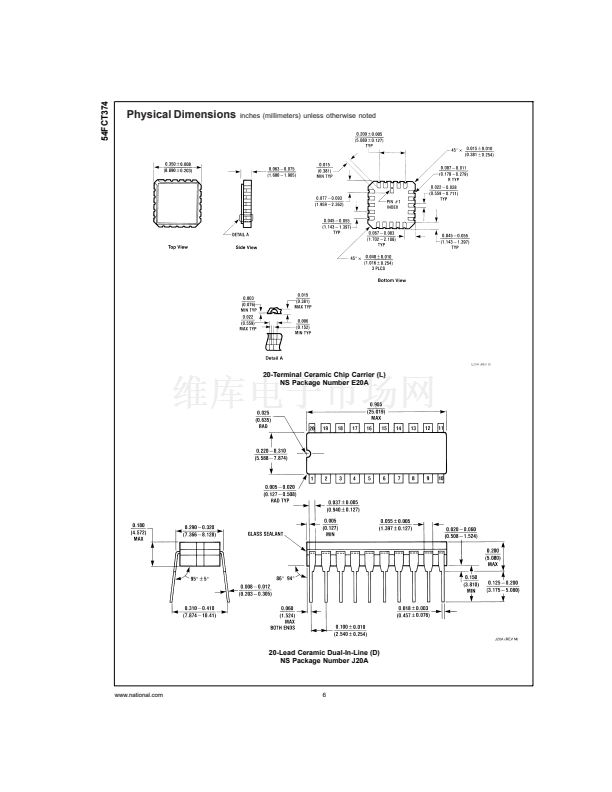

Ordering Code

Military

54FCT374DMQB

54FCT374FMQB

54FCT374LMQB

J20A

W20A

E20A

Package

Number

20-Lead Ceramic Dual-In-Line

20-Lead Cerpack

20-Lead Ceramic Leadless Chip Carrier, Type C

Package Description

Connection Diagrams

Pin Assignment for DIP

and Flatpak

Pin Assignment

for LCC

DS100964-2

DS100964-1

TRI-STATE

廬

is a registered trademark of National Semiconductor Corporation.

漏 1999 National Semiconductor Corporation

DS100964

www.national.com
