MILITARY DATA SHEET

MN54F322-X REV 1A0

Original Creation Date: 06/10/96

Last Update Date: 07/30/96

Last Major Revision Date: 06/10/96

8-BIT SERIAL/PARALLEL REGISTER WITH SIGN EXTEND

General Description

The F322 is an 8-bit shift register with provision for either serial or parallel loading

and with 3-state parallel outputs plus a bistate serial output. Parallel data inputs and

parallel outputs are multiplexed to minimize pin count. State changes are initiated by

the rising edge of the clock. Four synchronous modes of operation are possible;

hold(store), shift right with serial entry, shift right with sign extend and parallel

load. An asynchronous Master Reset (MR) input overrides clocked operation and clears the

register.

Industry Part Number

54F322

NS Part Numbers

54F322DMQB

54F322FMQB

54F322LMQB

Prime Die

M322

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

Quality Conformance Inspection

MIL-STD-883, Method 5005

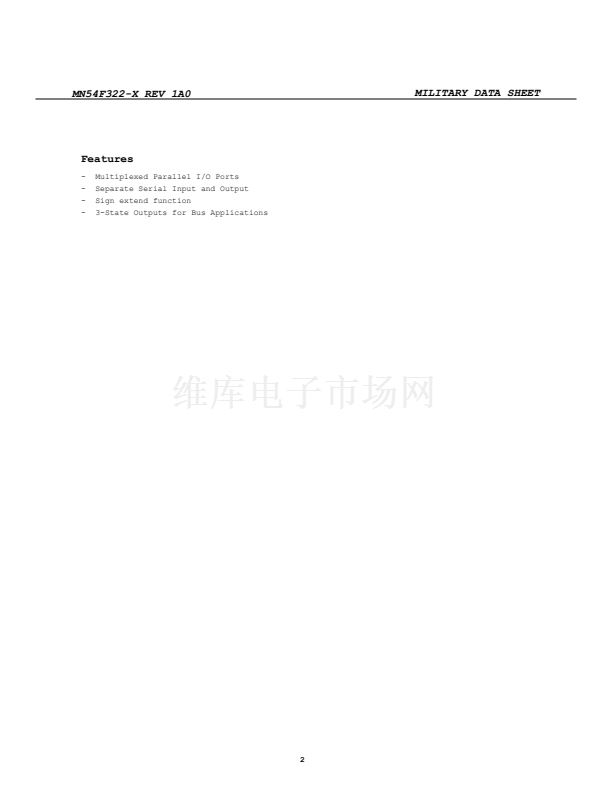

1
