MICROCIRCUIT DATA SHEET

CN54F258A-X REV 1A0

Original Creation Date: 04/15/97

Last Update Date: 02/10/98

Last Major Revision Date: 01/13/98

QUAD 2-INPUT MULTIPLEXER WITH TRI-STATE OUTPUTS

General Description

The F258A is a quad 2-Input multiplexer with Tri-State outputs. Four bits of data from

two sources can be selected using a Common Data Select Input. The four outputs present

the selected data in the complement (Inverted) form. The outputs may be switched to a

high impedance state with a HIGH on the common Output Enable (OE) input, allowing the

outputs to interface directly with bus-oriented systems.

Industry Part Number

54F258A

NS Part Numbers

54F258ADC

Prime Die

M258A

Processing

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+70

0

+25

+70

0

+25

+70

0

+25

+70

0

Quality Conformance Inspection

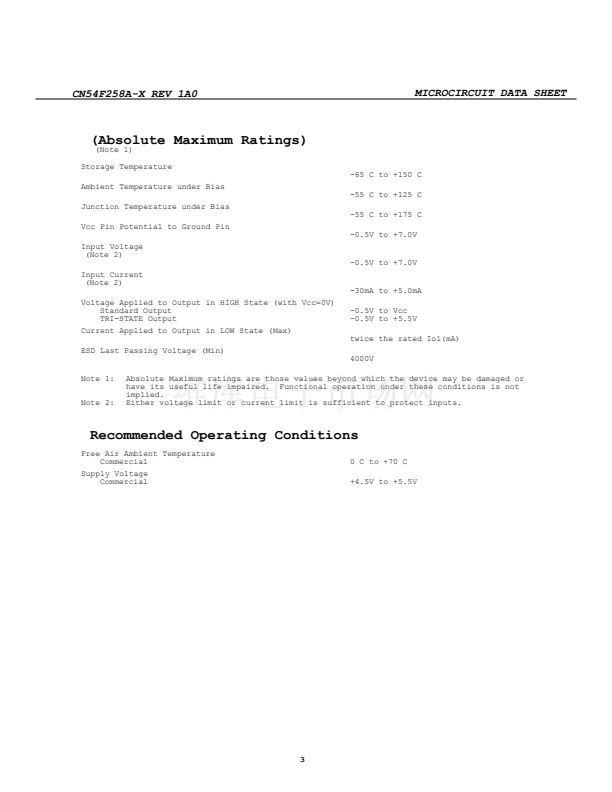

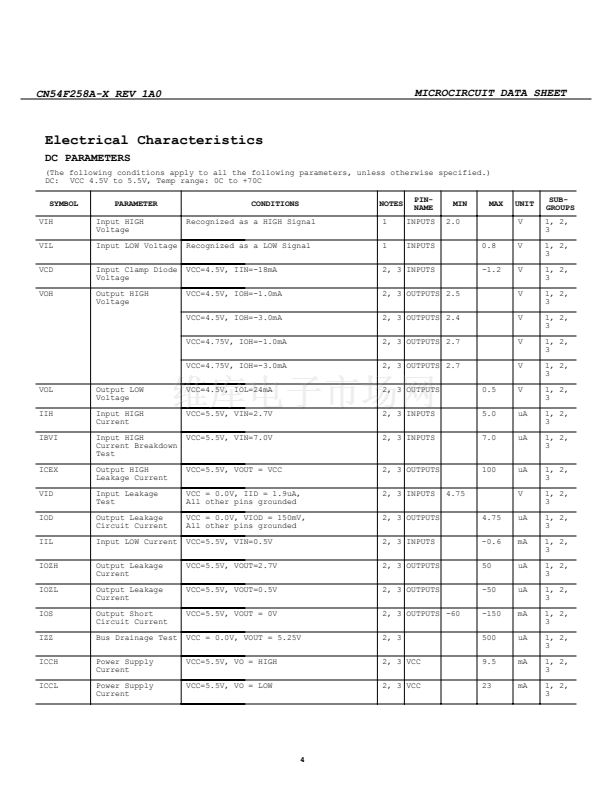

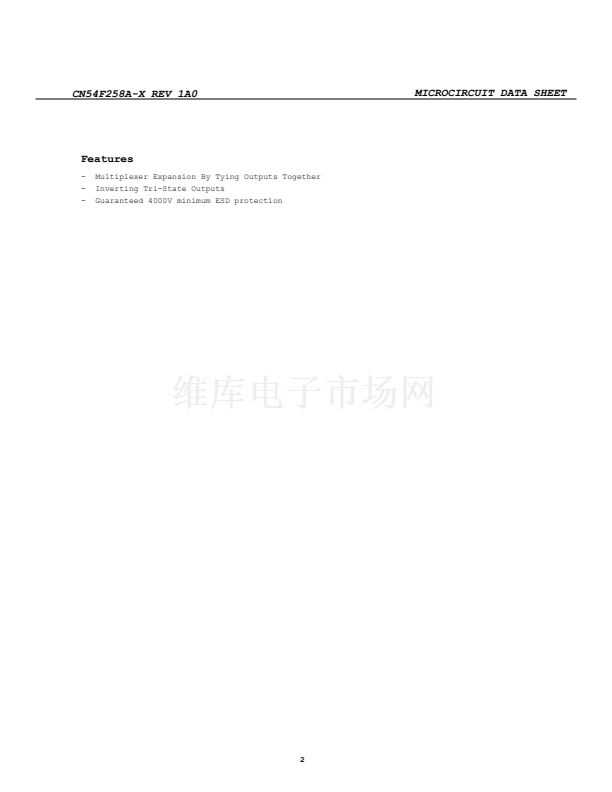

1
