MICROCIRCUIT DATA SHEET

CN54F251A-X REV 0A0

Original Creation Date: 06/25/97

Last Update Date: 07/08/97

Last Major Revision Date: 06/25/97

8-INPUT MULTIPLEXER WITH TRI-STATE OUTPUTS

General Description

The F251A is a high-speed 8-input digital multiplexer. It provides, in one package, the

ability to select one bit of data from up to eight sources. It can be used as a universal

function generator to generate any logic function of four variables. Both assertion and

negation outputs are provided.

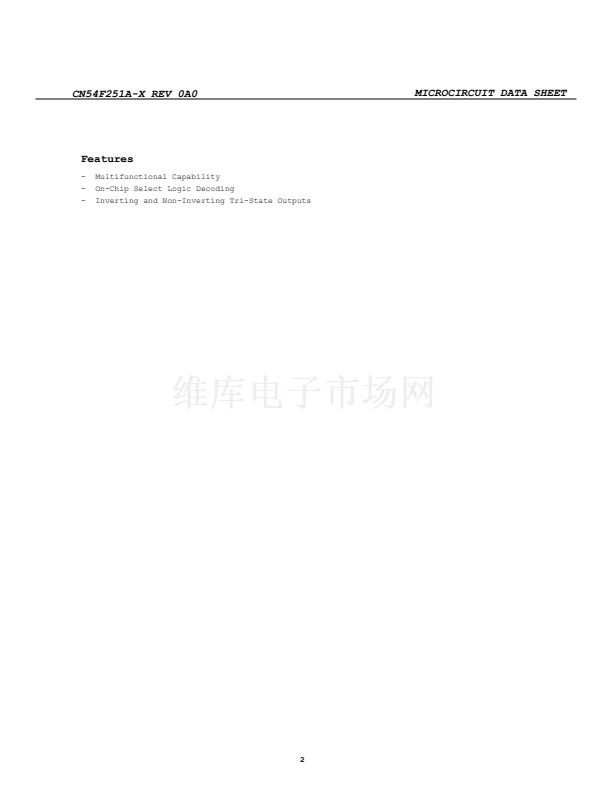

Industry Part Number

54F251A

NS Part Numbers

54F251ADC

Prime Die

M251A

Processing

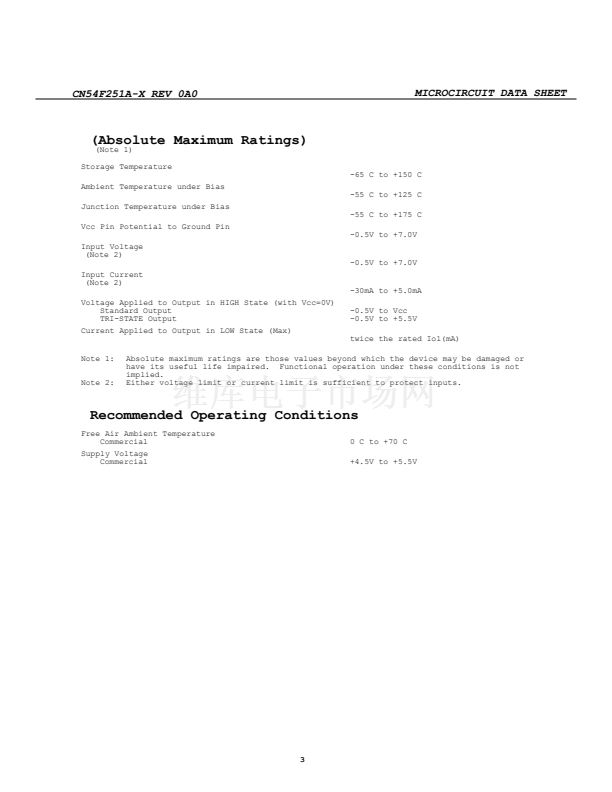

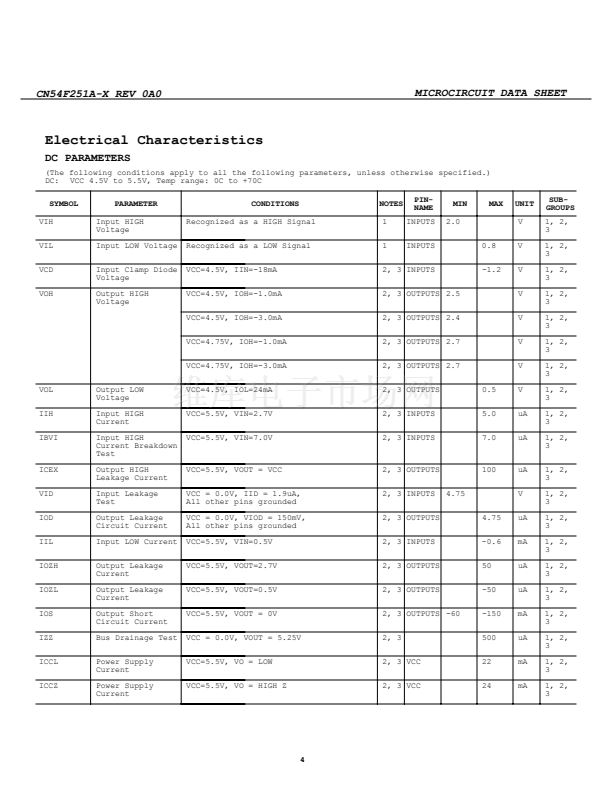

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+70

0

+25

+70

0

+25

+70

0

+25

+70

0

Quality Conformance Inspection

1
