MILITARY DATA SHEET

MN54F190-X REV 1A0

Original Creation Date: 03/26/96

Last Update Date: 07/30/96

Last Major Revision Date: 03/26/96

UP/DOWN DECADE COUNTER WITH PRESET AND RIPPLE CLOCK

General Description

The F190 is a reversible BCD (8421) decade counter featuring synchronous counting and

asynchronous presetting. The preset feature allows the F190 to be used in programmable

deviders. The Count Enable input, the Terminal Count output and the Ripple Clock output

make possible a variety of methods of implementing multistage counters. In the counting

modes, state changes are initiated by the rising edge of the clock.

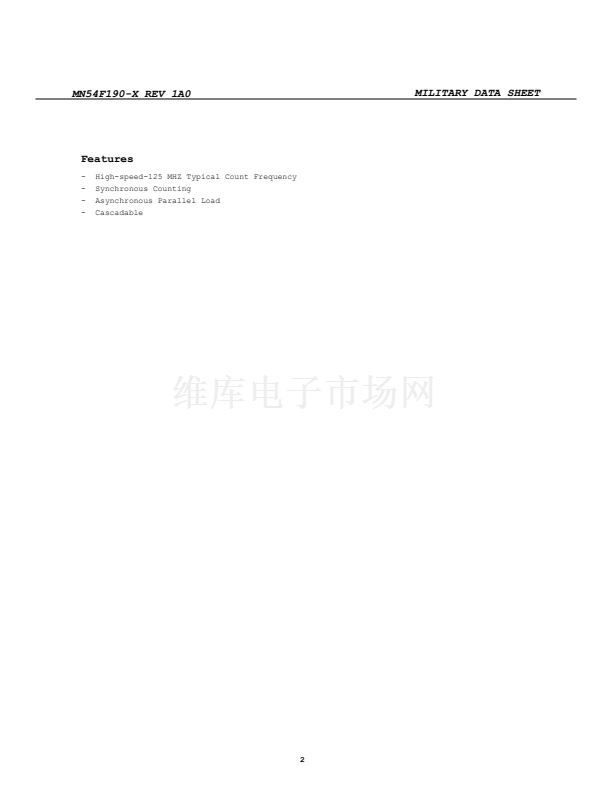

Industry Part Number

54F190

NS Part Numbers

54F190DMQB

54F190FMQB

54F190LMQB

Prime Die

M190

Processing

MIL-STD-883, Method 5004

Subgrp Description

1

2

3

4

5

6

7

8A

8B

9

10

11

Static tests at

Static tests at

Static tests at

Dynamic tests at

Dynamic tests at

Dynamic tests at

Functional tests at

Functional tests at

Functional tests at

Switching tests at

Switching tests at

Switching tests at

Temp (

o

C)

+25

+125

-55

+25

+125

-55

+25

+125

-55

+25

+125

-55

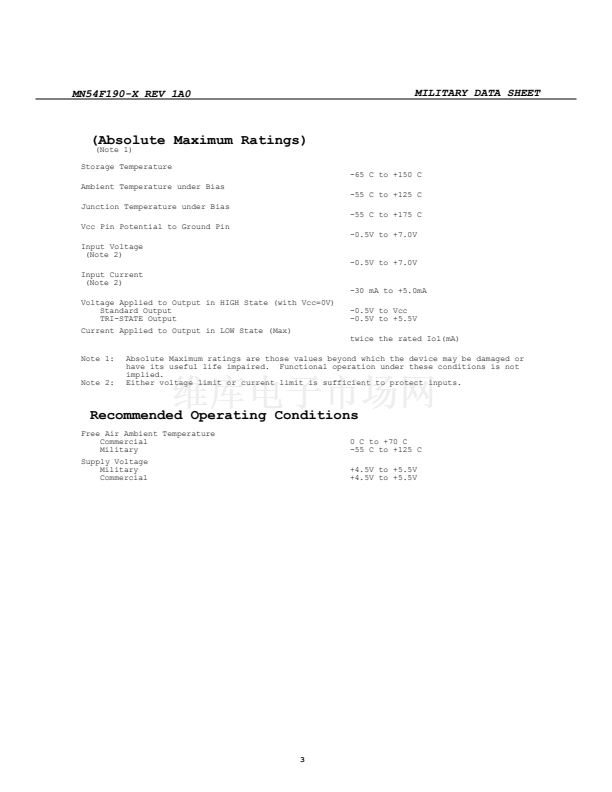

Quality Conformance Inspection

MIL-STD-883, Method 5005

1
