54F175DC Datasheet

  • 54F175DC

  • FLIP-FLOP|QUAD|D TYPE|F-TTL|DIP|16PIN|CERAMIC

  • 6頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

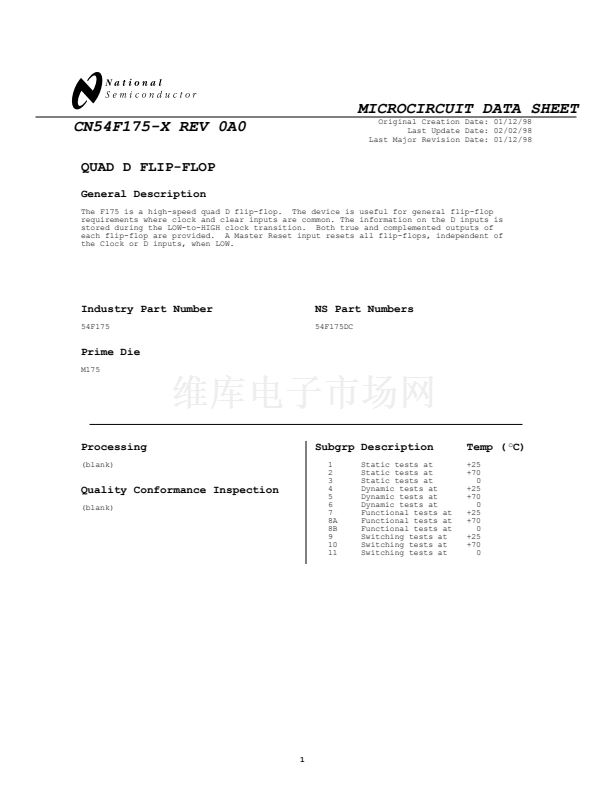

MICROCIRCUIT DATA SHEET
CN54F175-X REV 0A0
QUAD D FLIP-FLOP
General Description
The F175 is a high-speed quad D flip-flop. The device is useful for general flip-flop
requirements where clock and clear inputs are common. The information on the D inputs is
stored during the LOW-to-HIGH clock transition. Both true and complemented outputs of
each flip-flop are provided. A Master Reset input resets all flip-flops, independent of
the Clock or D inputs, when LOW.
Original Creation Date: 01/12/98
Last Update Date: 02/02/98
Last Major Revision Date: 01/12/98
Industry Part Number
54F175
NS Part Numbers
54F175DC
Prime Die
M175
Processing
(blank)
Subgrp Description
1
2
3
4
5
6
7
8A
8B
9
10
11
Static tests at
Static tests at
Static tests at
Dynamic tests at
Dynamic tests at
Dynamic tests at
Functional tests at
Functional tests at
Functional tests at
Switching tests at
Switching tests at
Switching tests at
Temp (
o
C)
+25
+70
0
+25
+70
0
+25
+70
0
+25
+70
0
Quality Conformance Inspection
(blank)
1
