54ACTQ573DMQB Datasheet

  • 54ACTQ573DMQB

  • LATCH|SINGLE|8-BIT|ACT-CMOS|DIP|20PIN|CERAMIC

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

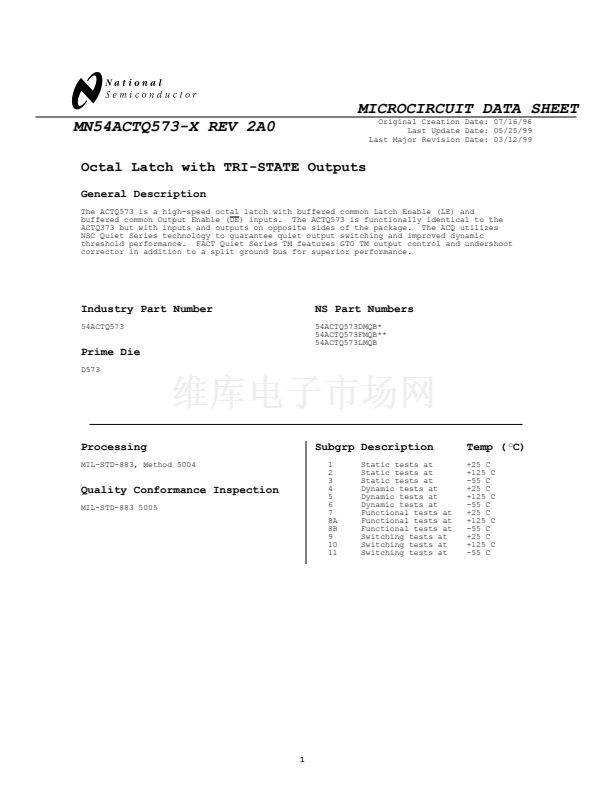

MICROCIRCUIT DATA SHEET
MN54ACTQ573-X REV 2A0
Octal Latch with TRI-STATE Outputs
General Description
The ACTQ573 is a high-speed octal latch with buffered common Latch Enable (LE) and
buffered common Output Enable (OE) inputs. The ACTQ573 is functionally identical to the
ACTQ373 but with inputs and outputs on opposite sides of the package. The ACQ utilizes
NSC Quiet Series technology to guarantee quiet output switching and improved dynamic
threshold performance. FACT Quiet Series TM features GTO TM output control and undershoot
corrector in addition to a split ground bus for superior performance.
Original Creation Date: 07/16/96
Last Update Date: 05/25/99
Last Major Revision Date: 03/12/99
Industry Part Number
54ACTQ573
NS Part Numbers
54ACTQ573DMQB*
54ACTQ573FMQB**
54ACTQ573LMQB
Prime Die
D573
Processing
MIL-STD-883, Method 5004
Subgrp Description
1
2
3
4
5
6
7
8A
8B
9
10
11
Static tests at
Static tests at
Static tests at
Dynamic tests at
Dynamic tests at
Dynamic tests at
Functional tests at
Functional tests at
Functional tests at
Switching tests at
Switching tests at
Switching tests at
Temp (
o
C)
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
Quality Conformance Inspection
MIL-STD-883 5005
1
