54ACTQ541DMQB Datasheet

  • 54ACTQ541DMQB

  • BUFFER/DRIVER|SINGLE|8-BIT|ACT-CMOS|DIP|20PIN|CERAMIC

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

MICROCIRCUIT DATA SHEET
MN54ACTQ541-X REV 2A0
Original Creation Date: 07/16/96
Last Update Date: 05/27/99
Last Major Revision Date: 03/11/99

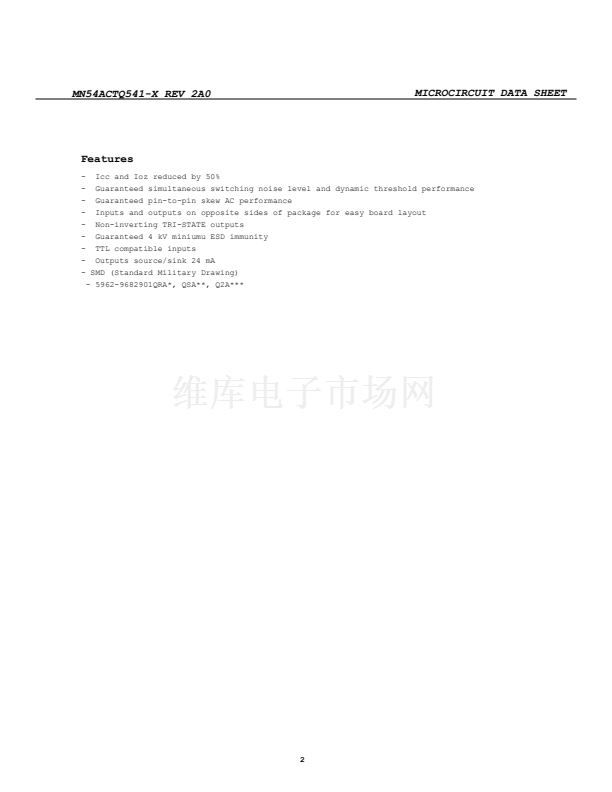

Octal Buffer/Line Driver with TRI-STATE Outputs
General Description
The ACTQ541 is an octal buffer/line driver designed to be employed as a memory and address
driver, clock driver and bus oriented transmitter/receiver.
This device is similar in function to the ACTQ244 while providing flow-through
architecture (inputs on opposite side from outputs). This pinout arrangement makes this
device especially useful as an output port for microprocessors, allowing ease of layout
and greater PC board density.
The ACTQ541 utilizes NSC's FACT TM Quiet Series technology to guarantee quiet output
switching the improved dynamic threshold performance. FACT Quiet series features GTO
output control and undershoot corrector in addition to split ground bus for superior
performance.
Industry Part Number
54ACTQ541
NS Part Numbers
54ACTQ541DMQB*
54ACTQ541FMQB**
54ACTQ541LMQB***
Prime Die
D541
Controlling Document
5962-96829
Processing
MIL-STD-883, Method 5004
Subgrp Description
1
2
3
4
5
6
7
8A
8B
9
10
11
Static tests at
Static tests at
Static tests at
Dynamic tests at
Dynamic tests at
Dynamic tests at
Functional tests at
Functional tests at
Functional tests at
Switching tests at
Switching tests at
Switching tests at
Temp (
o
C)
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
Quality Conformance Inspection
MIL-STD-883 5005
1
