54ACTQ245DMQB Datasheet

  • 54ACTQ245DMQB

  • BUS TRANSCEIVER|SINGLE|8-BIT|ACT-CMOS|DIP|20PIN|CERAMIC

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

MICROCIRCUIT DATA SHEET
MN54ACTQ245-X REV 2A0
Original Creation Date: 07/15/96
Last Update Date: 03/19/99
Last Major Revision Date: 03/08/99
Octal Bidirectional Transceiver With 3-State
Inputs/Outputs
General Description
The ACQ/ACTQ245 contains eight non-inverting bidirectional buffers with TRI-STATE outputs
and is intended for bus-oriented applications. Current sinking capability is 24 mA at
both the A and B ports. The Transmit/Receiver (T/R) input determines the direction of
data flow through the bidirectional transceiver. Transmit (Active-HIGH) enables data from
A ports to B ports; Receive (active-LOW) enables data from B ports to A ports. The Output
Enable input, when HIGH, disables both A and B ports by placing them in a HIGH Z
condition.
The ACQ/ACTQ utilizes NSC Quiet Series technology to guarantee quiet output switching and
improve dynamic threshold performance. FACT Quiet Series TM features GTO TM output
control and undershoot corrector in addition to a split ground bus for superior
performance.

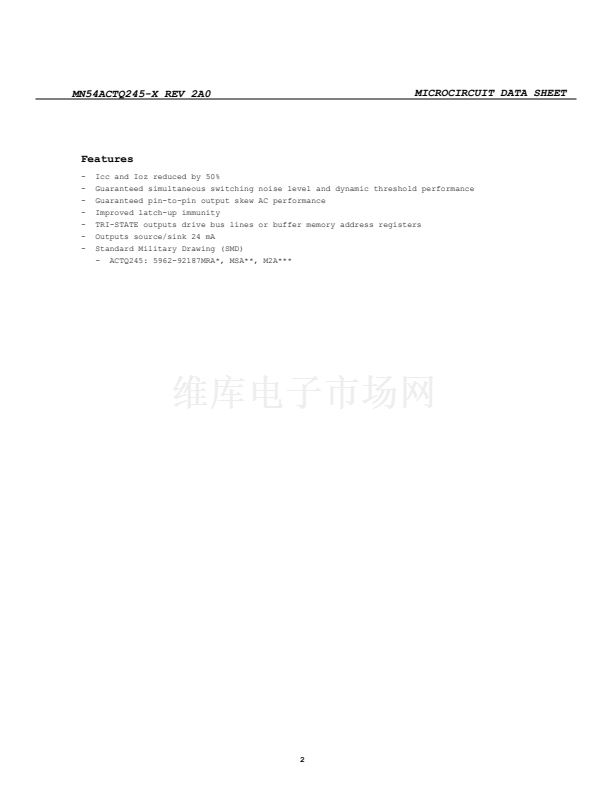

Industry Part Number
54ACTQ245
NS Part Numbers
54ACTQ245DMQB*
54ACTQ245FMQB**
54ACTQ245LMQB***
Prime Die
D245
Controlling Document
5962-92187
Processing
MIL-STD-883, Method 5004
Subgrp Description
1
2
3
4
5
6
7
8A
8B
9
10
11
Static tests at
Static tests at
Static tests at
Dynamic tests at
Dynamic tests at
Dynamic tests at
Functional tests at
Functional tests at
Functional tests at
Switching tests at
Switching tests at
Switching tests at
Temp (
o
C)
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
+25 C
+125 C
-55 C
Quality Conformance Inspection
MIL-STD-883 5005
1
