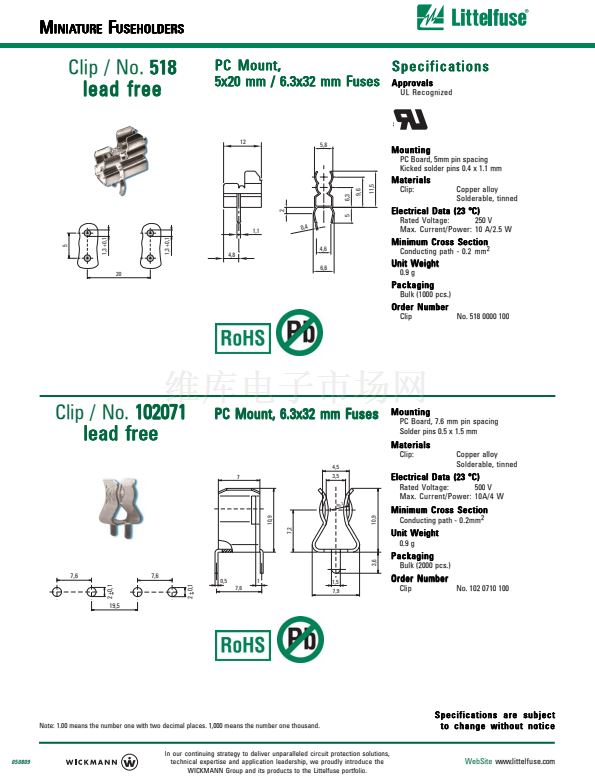

M
INIATURE
F
USEHOLDERS
INIATURE
Clip / No. 518
lead free
PC Mount,
Specifications
5x20 mm / 6.3x32 mm Fuses
Approvals
UL Recognized
12
5,8
Mounting
PC Board, 5mm pin spacing
Kicked solder pins 0.4 x 1.1 mm
Clip:
Copper alloy
Solderable, tinned
6,3
9,6
11,5
Materials
5
Electrical Data (23 潞C)
2
1,1
1,3 +0,1
1,3 +0,1
5
0,4
4,6
Rated Voltage:
250 V
Max. Current/Power: 10 A/2.5 W
Conducting path - 0.2 mm
2
0.9 g
Minimum Cross Section
Unit Weight
Packaging
Clip
Bulk (1000 pcs.)
4,8
6,6
20
Order Number
No. 518 0000 100
Clip / No. 102071
lead free
PC Mount, 6.3x32 mm Fuses
Mounting
PC Board, 7.6 mm pin spacing
Solder pins 0.5 x 1.5 mm
Clip:
Copper alloy
Solderable, tinned
Materials
4,5
7
3,5
Electrical Data (23 潞C)
Rated Voltage:
500 V
Max. Current/Power: 10A/4 W
Conducting path - 0.2mm
2
0.9 g
2
R3,
Minimum Cross Section
10,9
10,9
Unit Weight
3,6
7,2
Packaging
Clip
Bulk (2000 pcs.)
No. 102 0710 100
7,6
2 +0,1
7,6
2 +0,1
0,5
7,6
1
1,5
7,9
Order Number
19,5
Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.
Specifications are subject
to change without notice
050809
