Bulletin PD-20681 09/04

50UQ03G

SCHOTTKY RECTIFIER

5.5 Amp

I

F(AV)

= 5.5Amp

V

R

= 30V

Major Ratings and Characteristics

Characteristics

I

F(AV)

Rectangular

waveform

V

RRM

I

FSM

@ tp = 5 碌s sine

V

F

T

J

@ 5 Apk, T

J

= 125擄C

range

Description/ Features

The 50UQ03G I-PAK Schottky rectifier has been designed for

applications requiring low forward drop and small foot prints

on PC board. Typical applications are in disk drives, switching

power supplies, converters, free-wheeling diodes, battery

charging, and reverse battery protection.

150擄C T

J

operation

Unique I-PAK outline

Center tap configuration

Small foot print

Low forward voltage drop

High frequency operation

Guard ring for enhanced ruggedness and long term

reliability

50UQ03G Units

5.5

30

240

0.35

- 40 to 150

A

V

A

V

擄C

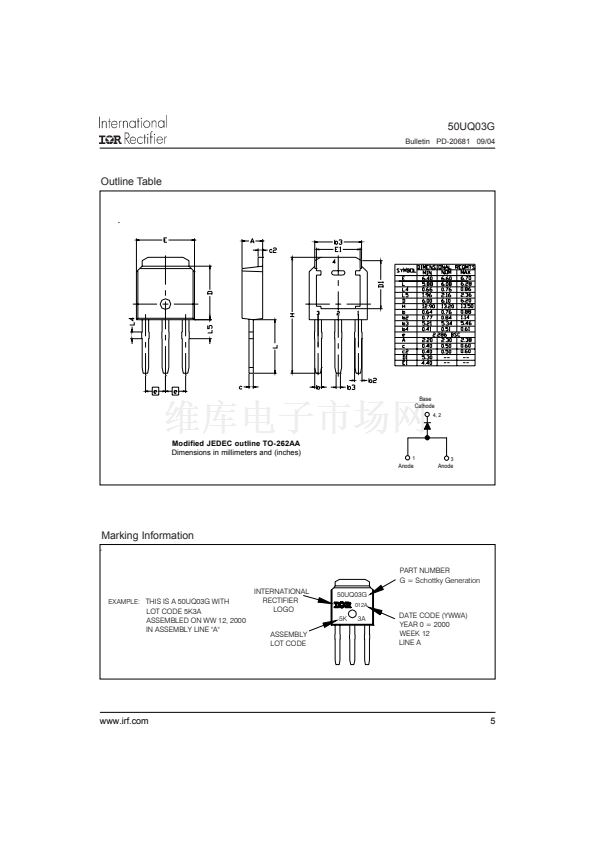

Case Styles

50UQ03G

Base

Cathode

4, 2

1

3

Anode

Anode

I-PAK

www.irf.com

1
