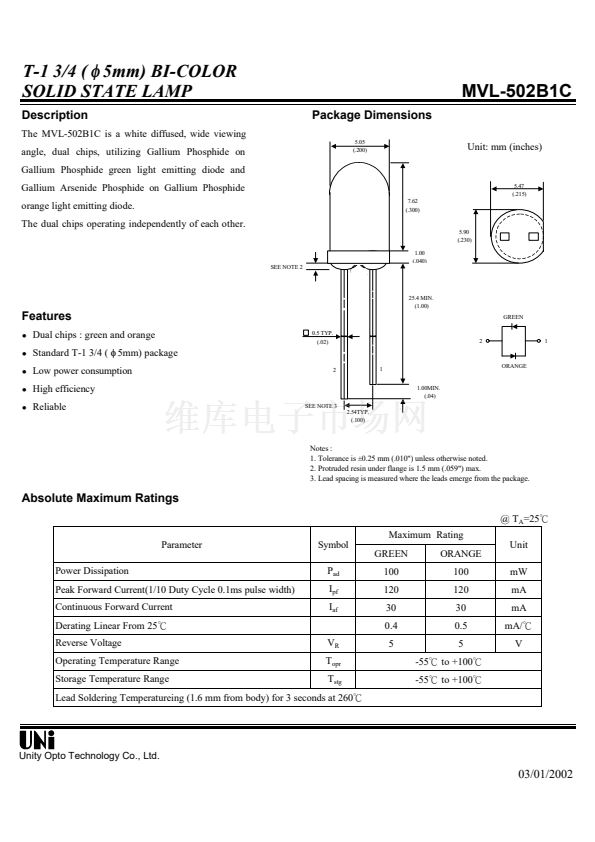

T-1 3/4 (
蠁
5mm) BI-COLOR
SOLID STATE LAMP
Description
The MVL-502B1C is a white diffused, wide viewing
angle, dual chips, utilizing Gallium Phosphide on
Gallium Phosphide green light emitting diode and
Gallium Arsenide Phosphide on Gallium Phosphide
orange light emitting diode.
The dual chips operating independently of each other.
7.62
(.300)
5.05
(.200)
MVL-502B1C
Package Dimensions
Unit: mm (inches)
5.47
(.215)
5.90
(.230)
1.00
(.040)
SEE NOTE 2
25.4 MIN.
(1.00)
Features
l
l
l
l
l
GREEN
0.5 TYP.
(.02)
Dual chips : green and orange
Standard T-1 3/4 (
蠁
5mm) package
Low power consumption
High efficiency
Reliable
2
1
2
1
1.00MIN.
(.04)
ORANGE
SEE NOTE 3
2.54TYP.
(.100)
Notes :
1. Tolerance is 鹵0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059") max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Ratings
@ T
A
=25鈩?/div>
Maximum Rating
Parameter
Power Dissipation
Peak Forward Current(1/10 Duty Cycle 0.1ms pulse width)
Continuous Forward Current
Derating Linear From 25鈩?/div>
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
V
R
T
opr
T
stg
Symbol
GREEN
P
ad
I
pf
I
af
100
120
30
0.4
5
ORANGE
100
120
30
0.5
5
-55鈩?to +100鈩?/div>
-55鈩?to +100鈩?/div>
mW
mA
mA
mA/鈩?/div>
V
Unit
Lead Soldering Temperatureing (1.6 mm from body) for 3 seconds at 260鈩?/div>
Unity Opto Technology Co., Ltd.
03/01/2002
