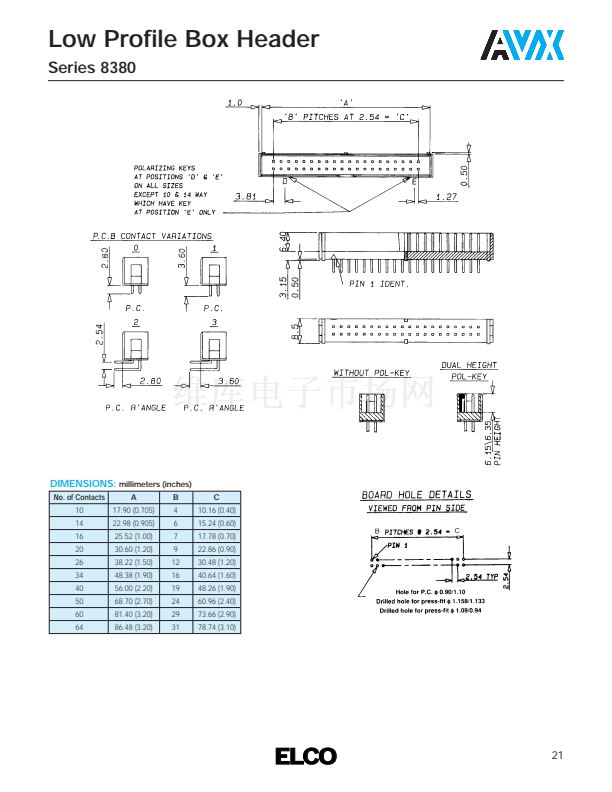

Low Profile Box Header
Series 8380
Low profile box headers are available in industry standard
sizes of 10-64 positions. They mate to Elco Series 8290
IDC sockets, as well as other industry compatible connec-
tors. Both straight and right angle solder dip pins for
PC boards are available together with straight press-fit
versions. The connector is shrouded on all four sides for
polarization and contact protection. Polarizing keys are
molded in for correct socket alignment with contact loss.
TECHNICAL SPECIFICATION
Material:
Molding - UL94VO rated glass filled grey
polyester
Contact - Copper alloy
Contact Plating:
Selective gold over nickel plating on
the mating face, reflow tin lead on
IDC section
Current Rating:
1 ampere at 70潞C maximum ambient
Voltage Rating:
350V DC or AC peak
Contact Resistance:
Initially 10 milliohms maximum
Dielectric Withstanding Voltage:
>1050 DC or AC peak
Insulation Resistance:
>1000 megohms
Operating Temperature:
-55潞C to +105潞C
UL File No.
E90723
CSA File No.
1255749
ORDERING CODE
00
Connector Code
Prefix
00 = Standard
Connector
Assembly
8380
Series Number
050
Number of
Contacts
010 = 10 position
014 = 14 position
016 = 16 position
020 = 20 position
026 = 26 position
034 = 34 position
040 = 40 position
050 = 50 position
060 = 60 position
064 = 64 position
000
Contact Variation
000 = Solder Tail Straight Contact
for 1.6mm PCB - Contact
Length (2.8)
001 = Solder Tail Straight Contact
for 2.4mm PCB - Contact
Length (3.6)
002 = Solder Tail Right Angle
Contact for 1.6mm PCB -
Contact Length (2.8)
003 = Solder Tail Right Angle
Contact for 2.6mm PCB -
Contact Length (3.6)
009 = Press-Fit Contact for 2.4/3.2
PCB - Contact Length (5.3)
01
Plating Variation
01 = 30碌" Gold over
Nickel solder
04 = 10碌" Gold
over Nickel
01
Polarization
0 = No Polarizing
Keys
Standard
2 = Type B -
Dual Height
molded in
polarizing
key(s)
NB: Additional plating and tail lengths are available.
Consult sales office for availability.
