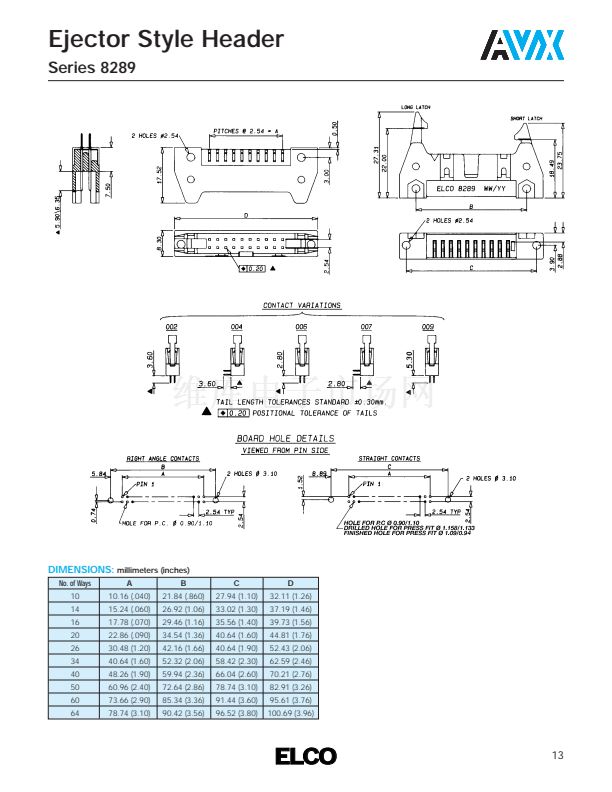

Ejector Style Header
Series 8289
Available in industry standard sizes of 10-64 positions,
they mate to Elco Series 8290 IDC sockets, as well as other
industry compatible connectors. Solder or press-fit
contacts are available in either straight or right angle
formats. The four wall design and optional molded in
polarizing keys ensure positive polarization without pin
loss. Latch/eject levers can also be specified to suit the
mating Series 8290 socket, either with or without strain
relief. Stand-off are incorporated to facilitate flux washing
and de-gassing.
TECHNICAL SPECIFICATION
Material:
Molding - UL94VO rated glass filled grey
polyester
Contact - Phosphor bronze
Contact Plating:
Selective gold over nickel plating on the
mating face, reflow tin lead IDC section
Current Rating:
1 ampere at 70潞C maximum ambient
Voltage Rating:
350V DC or AC peak
Contact Resistance:
Initially 10 milliohms maximum
Dielectric Withstanding Voltage:
1050 DC or AC peak
Insulation Resistance:
>1000 megohms
Operating Temperature:
-55潞C to +125潞C
UL File No.
E90723
CSA File No.
1255749
Latch/Eject Levers
Part Numbers when ordered separately.
Long (For 8290 socket with strain relief)
60 8289 6301 00 000
Short (For 8290 socket without strain relief) 60 8289 6302 00 000
ORDERING CODE
00
Connector Code
Prefix
00 = Standard
8289
Series
Number
050
Number of
Contacts
010 = 10 position
014 = 14 position
016 = 16 position
020 = 20 position
026 = 26 position
034 = 34 position
040 = 40 position
050 = 50 position
060 = 60 position
064 = 64 position
002
1
Latch/Eject Lever
0 = No
Latch/Eject
Lever
1 = Latch/Eject
Lever for use
with Series
8290 with
strain relief
2 = Latch/Eject
Lever for use
with Series
8290 with-
out strain
relief
1
1
Polarization
1 = Type A BS9525
& BT224 Dual
Height molding
in polarizing
key/keys
3 = No Polarizing
key/keys -
Standard
Contact
Termination
002 = Straight PC Tail
for 2.4mm PCB -
0.142" (3.60mm)
004 = Right Angle PC
Tail for 2.4mm
PCB - 0.142"
(3.60mm)
006 = Straight PC Tail
for 1.6mm PCB -
0.110" (2.80mm)
007 = Right Angle PCB
Tail for 1.6mm
PCB - 0.110"
(2.80mm)
009 = Press-Fit PC Tail
2.4/3.2mm PCB -
0.209" (5.3mm)
Plating
1 = Selective Plating
30碌" Gold over
Nickel
4 = Selective Plating
10碌" Gold over
Nickel
12
