IDC Systems

Cardedge Connectors

P

RODUCT

D

ESCRIPTION

The Cardedge Connectors are

designed to provide a high-

performance flat cable interface to

double-sided printed circuit-boards.

A variety of mounting options provide

application versatility.

CARDEDGE CONNECTORS

10 THROUGH 60

POSITIONS

D

ESIGN

A

DVANTAGES

鈥?10 connector sizes鈥?0, 16, 20,.26

30, 34, 40, 44, 50 and 60

positions.

鈥?Available in three mounting

configurations: full mounting ears,

half mounting ears, and no

mounting ears.

鈥?Contact Material鈥擝eryllium copper

with 30 micro inches min. gold

plating over 50 micro inches min

nickel plating.

鈥?Bifurcated contact design offers

two points of contact for electrical

reliability; tolerates PC8 Pad

variations.

鈥?Withstands increased mating and

unmating forces.

鈥?Uniform wall thickness provides

consistent contact force.

鈥?Separate polarizing key available.

鈥?Polarizing key locks securely into

body of connector tabs.

鈥?Strain relief available for cardedge

connector with no mounting ears.

CARDEDGE INDEX

Cardedge w/o mounting ears ..................................................57

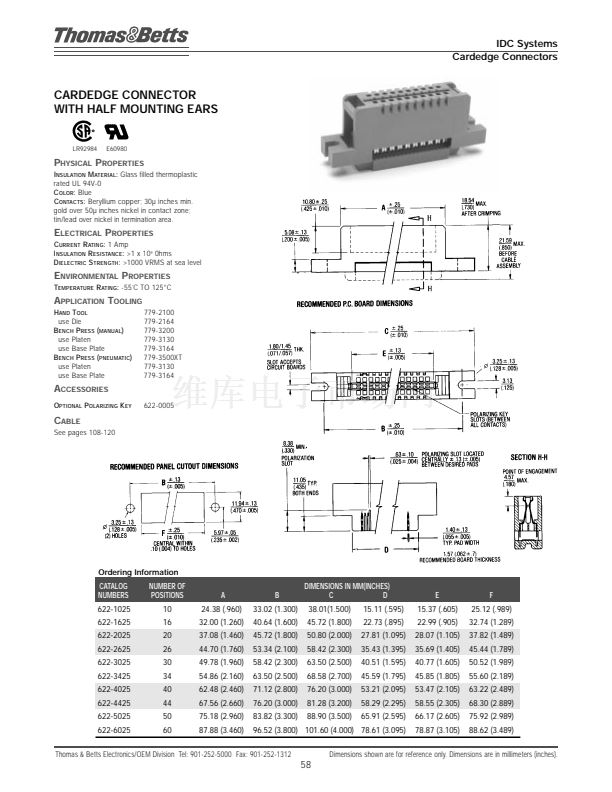

Cardedge w/half mounting ears ..............................................58

Cardedge with mounting ears ................................................59

Polarization Key ......................................................................60

LR92984

E60980

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

56
