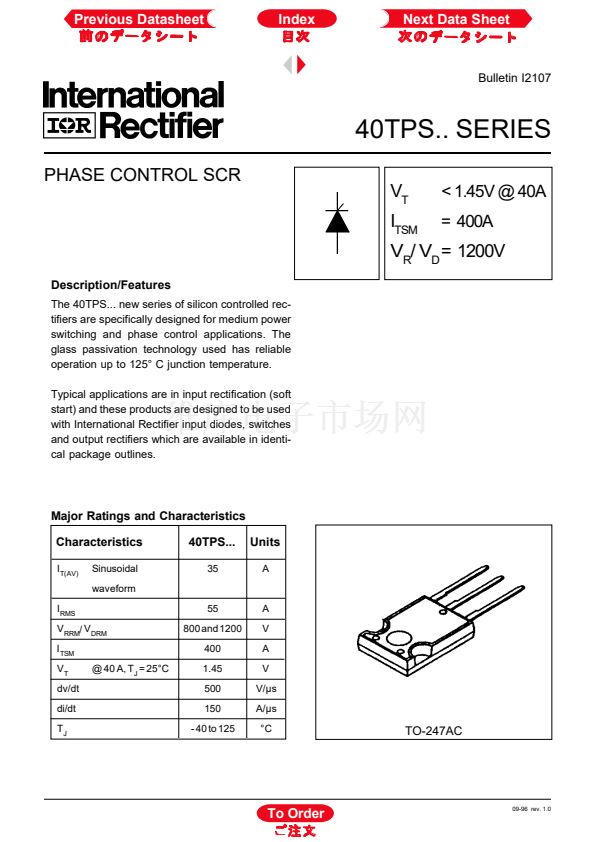

Bulletin I2107
40TPS.. SERIES
PHASE CONTROL SCR
V
T
I
TSM
Description/Features
The 40TPS... new series of silicon controlled rec-
tifiers are specifically designed for medium power
switching and phase control applications. The
glass passivation technology used has reliable
operation up to 125擄 C junction temperature.
Typical applications are in input rectification (soft
start) and these products are designed to be used
with International Rectifier input diodes, switches
and output rectifiers which are available in identi-
cal package outlines.
< 1.45V @ 40A
= 400A
V
R
/ V
D
= 1200V
Major Ratings and Characteristics
Characteristics
I
T(AV)
Sinusoidal
waveform
I
RMS
V
RRM
/ V
DRM
I
TSM
V
T
dv/dt
di/dt
T
J
@ 40 A, T
J
= 25擄C
55
800 and 1200
400
1.45
500
150
- 40 to 125
A
V
A
V
V/碌s
A/碌s
擄C
40TPS...
35
Units
A
TO-247AC
1
