HCC4070/77B

HCF4070/77B

GATES

4070B鈥換UAD EXCLUSIVE鈥揙R GATE

4037B鈥換UAD EXCLUSIVE鈥揘OR GATE

MEDIUM-SPEED OPERATION t

PHL

= t

PLH

70ns (typ.) AT V

= 10V, C

= 50pF

QUIESCENT CURRENT SPECIFIED TO 20V

FOR HCC DEVICE

5V, 10V AND 15V PARAMETRIC RATING

INPUT CURRENT OF 100nA AT 18V AND

25擄C FOR HCC DEVICE

100% TESTED FOR QUIESCENT CURRENT

MEETS ALL REQUIREMENTS OF JEDEC TEN-

TATIVE STANDARD No. 13A, 鈥漇TANDARD

SPECIFICATIONS FOR DESCRIPTION OF 鈥滲鈥?/div>

SERIES CMOS DEVICES鈥?/div>

(Plastic Package)

(Ceramic Package)

(Micro Package)

(Chip Carrier)

ORDER CODES :

HCC40XXBF

HCF40XXBM1

HCF40XXBEY

HCF40XXBC1

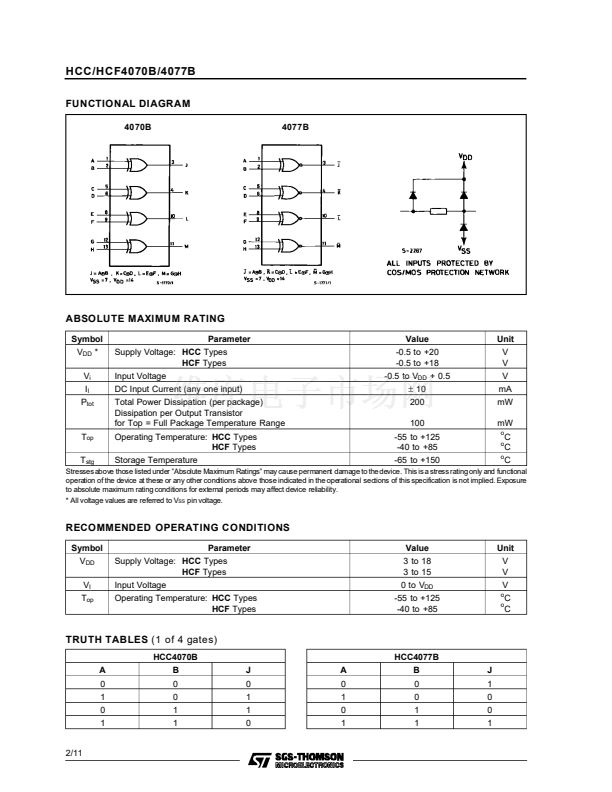

PIN CONNECTIONS

4070B

DESCRIPTION

The

HCC4070B/4077B

(extended temperature

range) and

HCF4070B/4077B

(intermediate tem-

perature range) are monolithic integrated circuits,

available in 14-lead dual in-line plastic or ceramic

package and plastic micropackage.

The

HCC/HCF4070B

contains four independent ex-

clusive-OR gates.

The

HCC/HCF4077B

contains four independent ex-

clusive-NOR gates.

The

HCC/HCF4070B

and

HCC/HCF4077B

provide

the system designer with a means for direct im-

plementation of the exclusive-OR and exclusive-

NOR function, respectively. For applications as

Logical comparators, Adders/subtractors, Parity ge-

nerators and checkers.

September 1988

1/11
