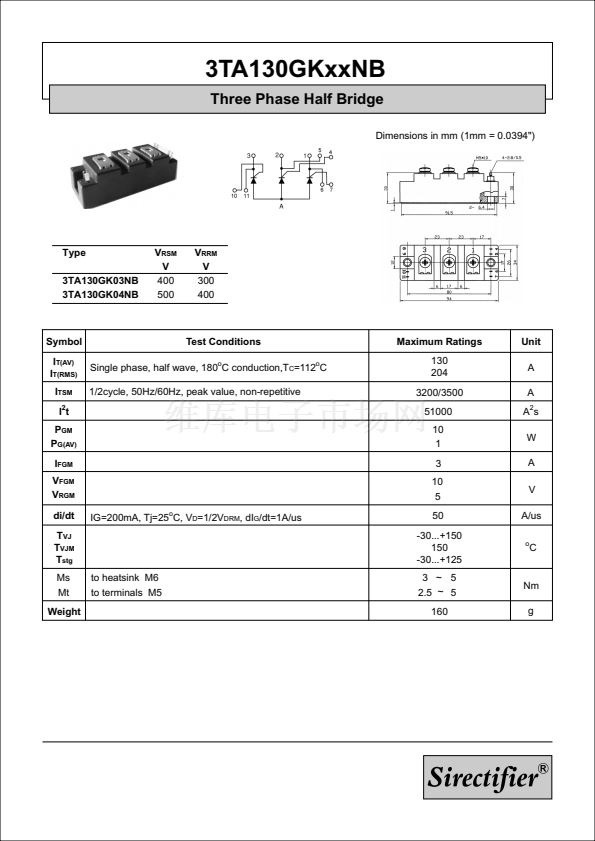

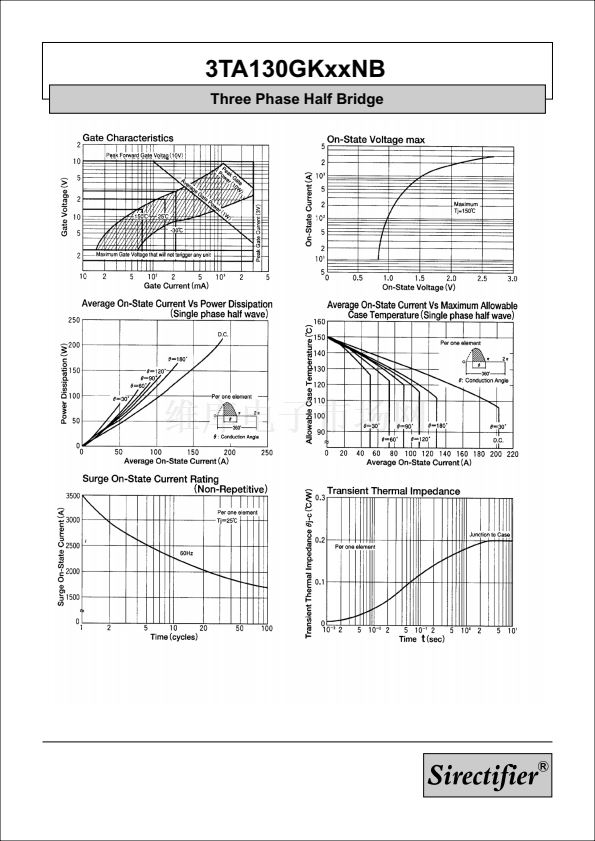

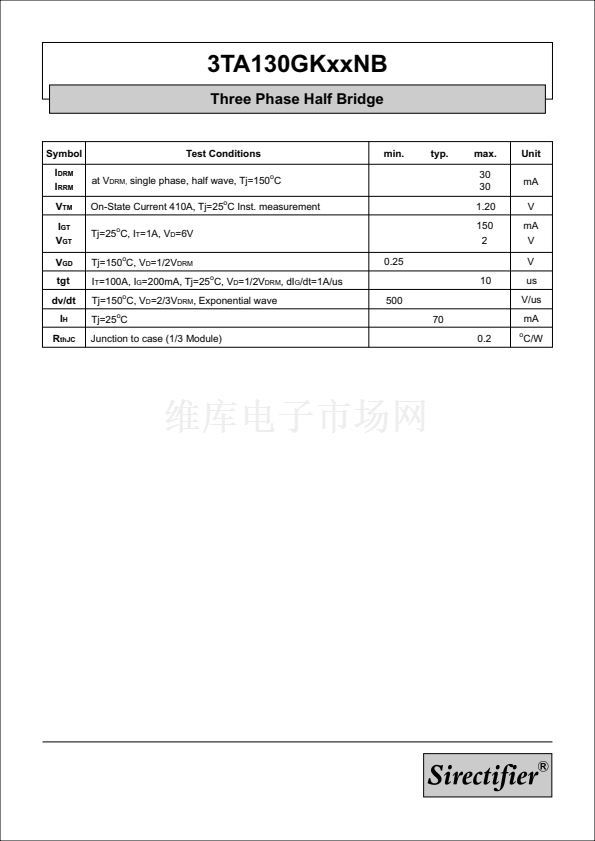

3TA130GKxxNB

Three Phase Half Bridge

Dimensions in mm (1mm = 0.0394")

Type

3TA130GK03NB

3TA130GK04NB

V

RSM

V

400

500

V

RRM

V

300

400

Symbol

I

T(AV)

I

T(RMS)

I

TSM

I

2

t

P

GM

P

G(AV)

I

FGM

V

FGM

V

RGM

di/dt

T

VJ

T

VJM

T

stg

Ms

Mt

Weight

to heatsink M6

to terminals M5

Test Conditions

Single phase, half wave, 180

o

C conduction,T

C

=112

o

C

1/2cycle, 50Hz/60Hz, peak value, non-repetitive

Maximum Ratings

130

204

3200/3500

51000

10

1

3

10

5

Unit

A

A

A

2

s

W

A

V

A/us

o

IG=200mA, Tj=25

o

C, V

D

=1/2V

DRM

, dI

G

/dt=1A/us

50

-30...+150

150

-30...+125

3 ~ 5

2.5 ~ 5

160

C

Nm

g

next
