3SMC5.0CA
THRU
3SMC170CA
SURFACE MOUNT BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
TRANSIENT VOLTAGE SUPPRESSOR
3000 WATTS, 5.0 THRU 170 VOLTS
Central
TM
Semiconductor Corp.
DESCRIPTION
The
CENTRAL
SEMICONDUCTOR
3SMC5.0CA Series types are Surface Mount
Bi-Directional Glass Passivated Junction
Transient Voltage Suppressors designed to
protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS
MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM
RELIABILITY.
Note: For Uni-directional devices, please
refer to the 3SMC5.0A Series data sheet.
SMC CASE
MAXIMUM RATINGS (TA=25擄C unless otherwise noted)
SYMBOL
Peak Power Dissipation
Peak Forward Surge Current (JEDEC Method)
Operating and Storage
Junction Temperature
PDM
IFSM
TJ,Tstg
3000
200
-65 to +150
UNITS
W
A
擄C

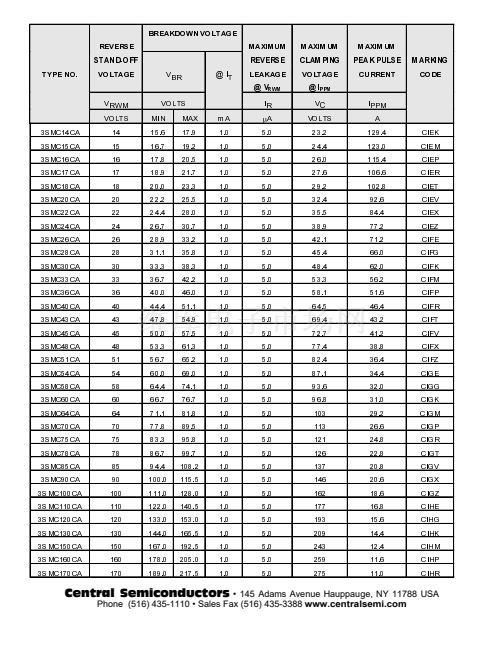

ELECTRICAL CHARACTERISTICS (TA=25擄C unless otherwise noted)
BREAKDOWN
REVERSE
STAND-OFF
TYPE NO.
VOLTAGE
VOLTAGE
MAXIMUM
REVERSE
MAXIMUM
CLAMPING
VOLTAGE
@ I
PPM
MAXIMUM
PEAK PULSE
CURRENT
MARKING
CODE
VBR
VOLTS
MIN
6.40
6.67
7.22
7.78
8.33
8.89
9.44
10.0
11.1
12.2
13.3
14.4
MAX
7.25
7.67
8.30
8.95
9.58
10.23
10.82
11.5
12.8
14.0
15.3
16.5
@
IT
LEAKAGE
@ V
RWM
VRWM
VOLTS
3SMC5.0CA
3SMC6.0CA
3SMC6.5CA
3SMC7.0CA
3SMC7.5CA
3SMC8.0CA
3SMC8.5CA
3SMC9.0CA
3SMC10CA
3SMC11CA
3SMC12CA
3SMC13CA
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
IR
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
?A
2000
2000
1000
400
200
100
50
20
5.0
5.0
5.0
5.0
VC
VOLTS
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
IPPM
A
326.0
291.3
267.9
250.0
232.6
220.6
208.4
194.8
176.4
184.8
150.6
139.4
CIDE
CIDG
CIDK
CIDM
CIDP
CIDR
CIDT
CIDV
CIDX
CIDZ
CIEE
CIEG
1
2
