PACKAGES
IN
N/C
O2
O4
O6
O8
GND
1
2
3
4
5
6
7
14
13
12
11
10
9
8
VDD
O1
O3
O5
O7
O9
O10
All-silicon, low-power CMOS technology
IN
1
14 VDD
TTL/CMOS compatible inputs and outputs
N/C
2
13 O1
Vapor phase, IR and wave solderable
O2
3
12 O3
Auto-insertable (DIP pkg.)
O4
4
11 O5
Low ground bounce noise
Leading- and trailing-edge accuracy
O6
5
10 O7
Delay range:
.75 through 80ns
O8
6
9 O9
Delay tolerance:
5% or 1ns
GND
7
8 O10
Temperature stability:
鹵3%
typical (0C-70C)
3D7110 DIP
Vdd stability:
鹵1%
typical (4.75V-5.25V)
3D7110G Gull-Wing
Minimum input pulse width:
15% of total delay
14-pin Gull-Wing and 16-pin SOIC
available as drop-in replacements
For mechanical dimensions, click
here
.
for hybrid delay lines
For package marking details, click
here
.
3D7110D SOIC
(150 Mil)
IN
N/C
N/C
O2
O4
O6
O8
GND
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDD
N/C
O1
O3
O5
O7
O9
O10
3D7110S SOL
(300 Mil)
FUNCTIONAL DESCRIPTION

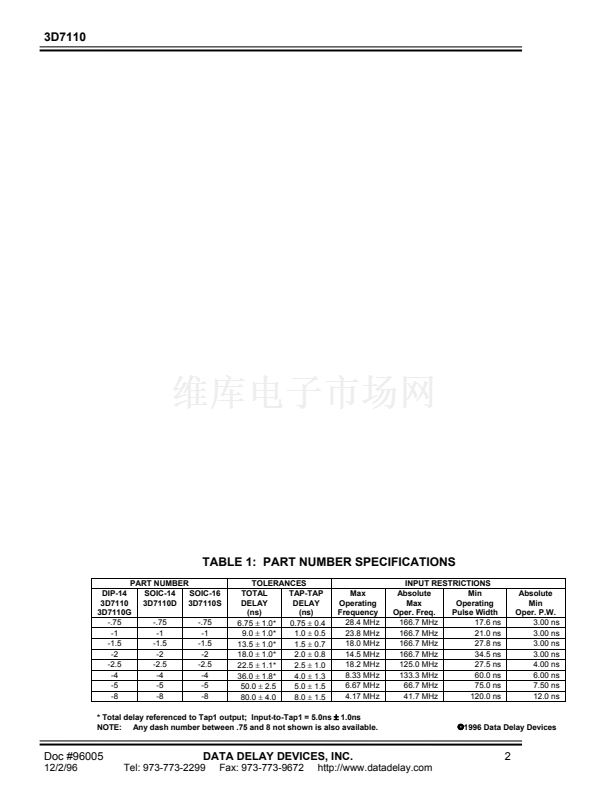

The 3D7110 10-Tap Delay Line product family consists of fixed-delay
CMOS integrated circuits. Each package contains a single delay line,
tapped and buffered at 10 points spaced uniformly in time. Tap-to-tap
(incremental) delay values can range from 0.75ns through 8.0ns. The
input is reproduced at the outputs without inversion, shifted in time as
per the user-specified dash number. The 3D7110 is TTL- and CMOS-
compatible, capable of driving ten 74LS-type loads, and features both
rising- and falling-edge accuracy.
The all-CMOS 3D7110 integrated circuit has been designed as a
reliable, economic alternative to hybrid TTL fixed delay lines. It is offered
in a standard 14-pin auto-insertable DIP and space saving surface
mount 14- and 16-pin SOIC packages.
PIN DESCRIPTIONS
IN
O1
O2
O3
O4
O5
O6
O7
O8
O9
O10
VDD
GND
Delay Line Input
Tap 1 Output (10%)
Tap 2 Output (20%)
Tap 3 Output (30%)
Tap 4 Output (40%)
Tap 5 Output (50%)
Tap 6 Output (60%)
Tap 7 Output (70%)
Tap 8 Output (80%)
Tap 9 Output (90%)
Tap 10 Output (100%)
+5 Volts
Ground
Doc #96005
12/2/96
DATA DELAY DEVICES, INC.
3 Mt. Prospect Ave. Clifton, NJ 07013
