Solid-state Relay

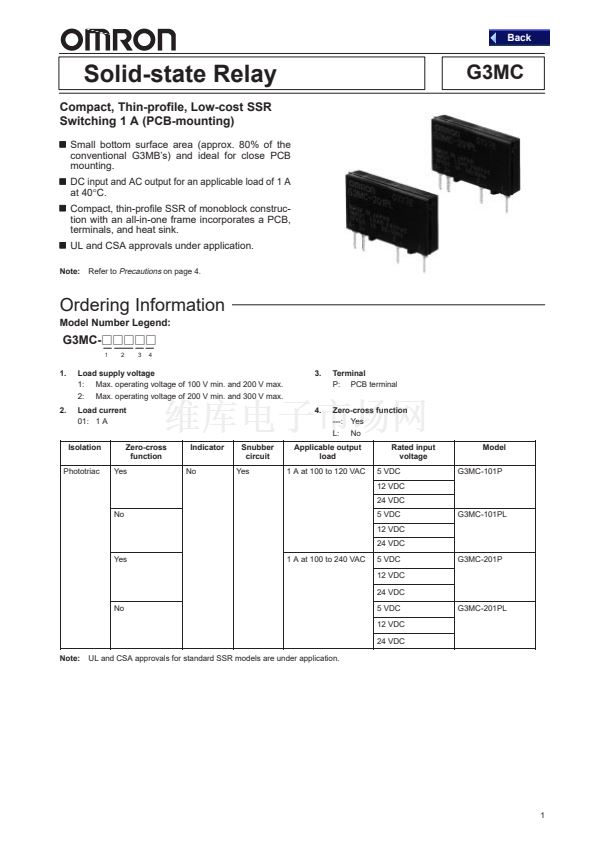

Compact, Thin-profile, Low-cost SSR
Switching 1 A (PCB-mounting)
Small bottom surface area (approx. 80% of the
conventional G3MB鈥檚) and ideal for close PCB
mounting.
DC input and AC output for an applicable load of 1 A
at 40擄C.
Compact, thin-profile SSR of monoblock construc-
tion with an all-in-one frame incorporates a PCB,
terminals, and heat sink.
UL and CSA approvals under application.
Note:
Refer to
Precautions
on page 4.
G3MC
R
CE
Ordering Information
Model Number Legend:
G3MC-jjjjj
1
2
3
4
1.
Load supply voltage
1: Max. operating voltage of 100 V min. and 200 V max.
2: Max. operating voltage of 200 V min. and 300 V max.
Load current
01: 1 A
Isolation
Zero-cross
function
Yes
Indicator
No
Snubber
circuit
Yes
3.
Terminal
P: PCB terminal
Zero-cross function
---: Yes
L: No
Rated input
voltage
5 VDC
12 VDC
24 VDC
Model
G3MC-101P
2.
4.
Applicable output
load
1 A at 100 to 120 VAC
Phototriac
No
5 VDC
12 VDC
24 VDC
G3MC-101PL
Yes
1 A at 100 to 240 VAC
5 VDC
12 VDC
24 VDC
G3MC-201P
No
5 VDC
12 VDC
24 VDC
G3MC-201PL
Note:
UL and CSA approvals for standard SSR models are under application.
1
1
2
3
4
