36DY103F040AM2A Datasheet

  • 36DY103F040AM2A

  • Aluminum Capacitors + 85 C, Large Can

  • 6頁

  • VISHAY   VISHAY

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

36DY
Vishay Sprague
Aluminum Capacitors
+ 85 擄C, Large Can
FEATURES
鈥?/div>
The industry standard for large can aluminum capacitors
鈥?/div>
Ideal for high wattage power supplies and energy storage
applications
鈥?/div>
Capacitance values to 2.2 farads
鈥?/div>
Largest CV available
鈥?/div>
Highest voltage available
Fig. 1 Component Outlines.

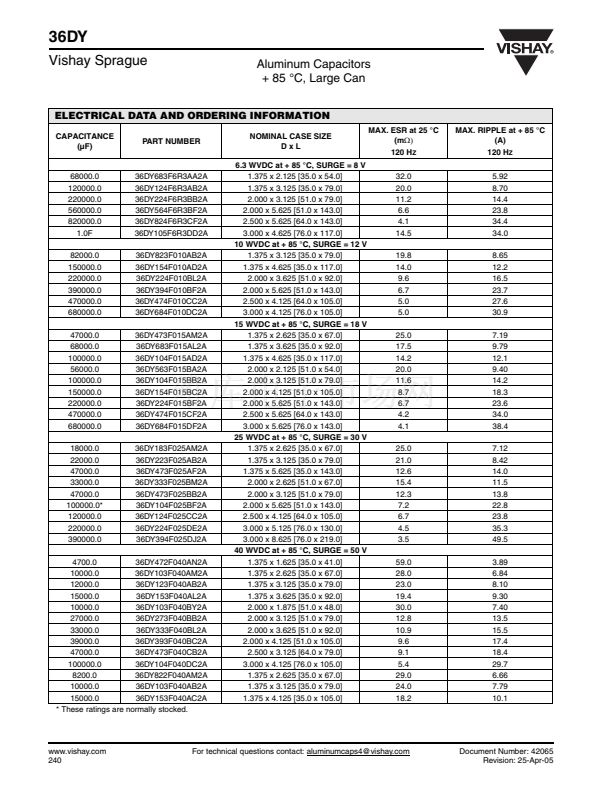

QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
脴D x L in mm
Operating temperature
Rated capacitance
range, C
R
Tolerance on C
R
Rated voltage range, U
R
Termination
Life validation test
at 85 擄C
VALUE
1.375鈥?x 1.625鈥?[35.0 x 41.3]
to 3.00鈥?x 8.675鈥?[76.2 x 220.3]
- 40 擄C to + 85 擄C
100 碌F to 2.2 碌F
- 10% to 50 %
6.3 WVDC to 450 WVDC
screw thread
2000 hours:
螖
CAP
鈮?/div>
15 % from initial
measurement.
螖
ESR
鈮?/div>
1.5 x initial
specified limit.
螖
DCL
鈮?/div>
initial specified
limit
500 hours:
螖
CAP
鈮?/div>
15 % from initial
measurement.
螖
ESR
鈮?/div>
1.2 x initial
specified limit.
螖
DCL
鈮?/div>
2 x initial
specified limit
I = K CV
K = 4.0 at + 25 擄C; 32.0 at + 85 擄C.
I in 碌A, C in 碌F, V in Volts
RIPPLE CURRENT MULTIPLIERS
TEMPERATURE
AMBIENT TEMPERATURE
+ 85 擄C
+ 75 擄C
+ 65 擄C
+ 55 擄C and below
FREQUENCY (Hz)
RATED WVDC
0 - 50
51 - 100
150 - 300
301 - 450
120
1.0
1.0
1.0
1.0
400
1.05
1.10
1.15
1.20
1000 AND UP
1.10
1.15
1.25
1.30
MULTIPLIERS
1.0
1.4
1.7
2.0
Shelf life at 85 擄C
DC leakage current

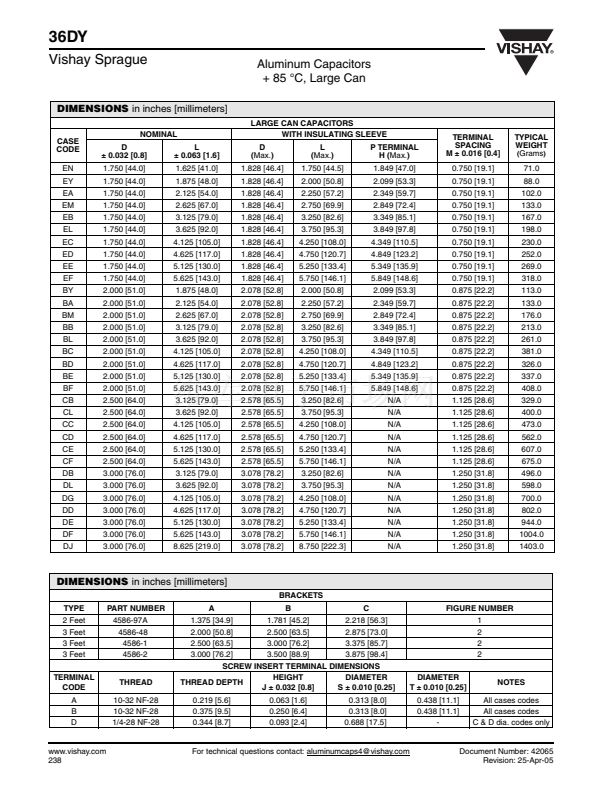

DIMENSIONS
in inches [millimeters]
CASE
CODE
AN
AY
AA
AM
AB
AL
AC
AD
AE
AF
NOMINAL
D
鹵 0.032 [0.8]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
1.375 [35.0]
L
鹵 0.063 [1.6]
1.625 [41.0]
1.875 [48.0]
2.125 [54.0]
2.625 [67.0]
3.125 [79.0]
3.625 [92.0]
4.125 [105.0]
4.625 [117.0]
5.125 [130.0]
5.625 [143.0]
LARGE CAN CAPACITORS
WITH INSULATING SLEEVE
D
(Max.)
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
1.453 [36.9]
L
(Max.)
1.750 [44.5]
2.000 [50.8]
2.250 [57.2]
2.750 [69.9]
3.250 [82.6]
3.750 [95.3]
4.250 [108.0]
4.750 [120.7]
5.250 [133.4]
5.750 [146.1]
P TERMINAL
H (Max.)
1.849 [47.0]
1.099 [53.3]
1.349 [59.7]
1.849 [72.4]
1.349 [85.1]
1.849 [97.8]
1.349 [110.5]
1.849 [123.2]
1.349 [125.9]
1.849 [148.6]
TERMINAL
SPACING
M 鹵 0.016 [0.4]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
0.500 [12.7]
TYPICAL
WEIGHT
(
Grams
)
43.0
54.0
63.0
82.0
105.0
122.0
129.0
162.0
179.0
201.0
www.vishay.com
237
Document Number: 42065
Revision: 25-Apr-05
For technical questions contact: aluminumcaps4@vishay.com
