applications. The 33984 is designed for harsh environments, and it includes
self-recovery features. The device is suitable for loads with high inrush current,
as well as motors and all types of resistive and inductive loads.
4.0 m鈩?/div>
Freescale Semiconductor, Inc...
Programming, control, and diagnostics are implemented via the Serial
Peripheral Interface (SPI). A dedicated parallel input is available for alternate
and pulse-width modulation (PWM) control of each output. SPI-programmable
fault trip thresholds allow the device to be adjusted for optimal performance in
the application.
The 33984 is packaged in a power-enhanced 12 x 12 nonleaded PQFN
package with exposed tabs.
Features
鈥?Dual 4.0 m鈩?Max High-Side Switch with Parallel Input or SPI Control
鈥?6.0 V to 27 V Operating Voltage with Standby Currents < 5.0
碌A(chǔ)
鈥?Output Current Monitoring with Two SPI-Selectable Current Ratios
鈥?SPI Control of Overcurrent Limit, Overcurrent Fault Blanking Time,
Output-OFF Open Load Detection, Output ON/OFF Control, Watchdog
Timeout, Slew Rates, and Fault Status Reporting
鈥?SPI Status Reporting of Overcurrent, Open and Shorted Loads,
Overtemperature, Undervoltage and Overvoltage Shutdown, Fail-Safe
Pin Status, and Program Status
鈥?Enhanced -16 V Reverse Polarity V
PWR
Protection

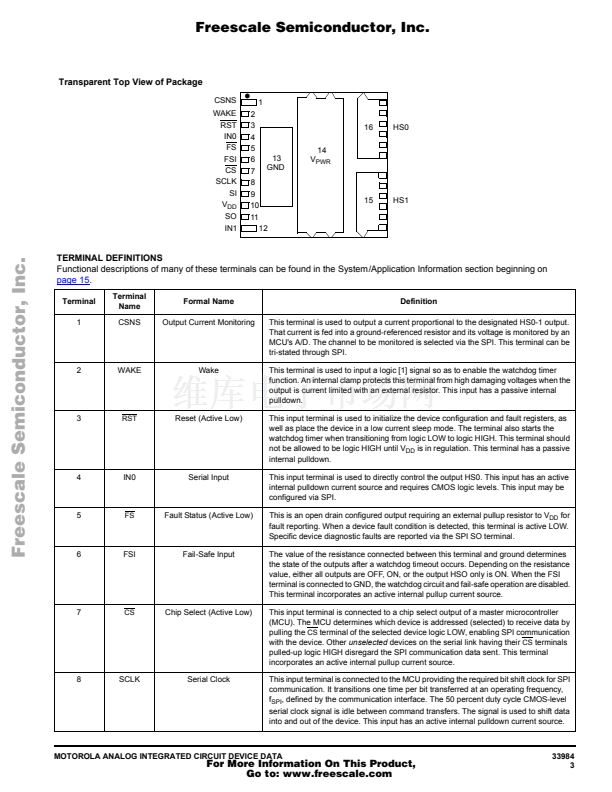

Bottom View
PNA SUFFIX
SCALE 1:1
CASE 1402-02
16-TERMINAL PQFN (12 x 12)
ORDERING INFORMATION
Device
MC33984PNA/R2
Temperature
Range (T
A
)
-40
擄
C to 125
擄
C
Package
16 PQFN
Simplified Application Diagram
33984 Simplified Application Diagram
V
DD
V
DD
V
DD
33984
V
DD
V
PWR
V
PWR
GND
I/O
I/O
SO
SCLK
CS
MCU
SI
I/O
I/O
I/O
A/D
FS
WAKE
SI
HS1
SCLK
CS
SO
HS0
RST
IN0
IN1
CSNS
FSI GND
LOAD
LOAD
GND
