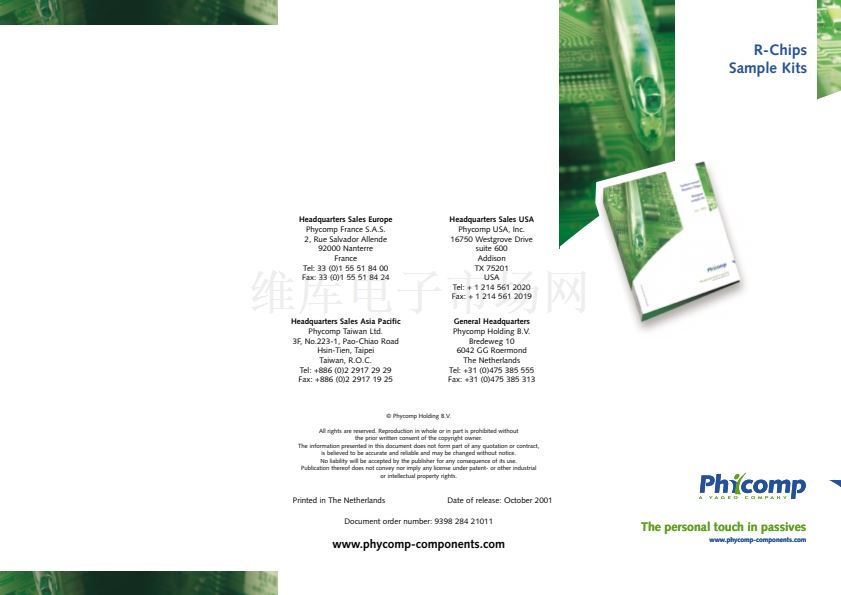

R-CHIPS SAMPLE KITS
Circuit designers take note! For its popular R-Chip
resistors series. Phycomp Components has a complete
range of sample kits available to support customers
design-in activities. The range comprises several kits
for our 0402, 0603, 0805 and 1206 in 1 and 5% resistors,
available in several possible series with or without
Jumpers. Also available are special kits containing
Resistor Array's (4*0603) in CONCAVE version
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC21
0603
E6 + jumper
1鈩?- 10 M鈩?/div>
44
50
0.1 W
鹵 200
50
3322 073 30094
RC02H
1206
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.25 W
鹵 100
200 V
3322 073 30098
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC31
0402
E24 - E12
10鈩?- 2M2鈩?/div>
64
100
0.063 W
鹵 200
50 V
3322 073 30105
RC31
0402
E24 + Jumper
10鈩?- 2M2鈩?/div>
130
100
0.063 W
鹵 200
50 V
3322 073 30106
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC12H
0805
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.125 W
鹵 100
150 V
3322 073 30099
RC22H
0603
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.1 W
鹵 100
50 V
3322 073 30101
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC32H
0402
E24 - E12
10鈩?- 1 M鈩?/div>
60
100
0.063 W
鹵 200
50 V
3322 073 30108
RC32H
0402
E24 + Jumper
10鈩?- 1 M鈩?/div>
122
100
0.063 W
鹵 200
50 V
3322 073 30109
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC01
1206
E6 + jumper
1鈩?- 10 M鈩?/div>
44
50
0.25 W
鹵 200
200 V
3322 073 30092
RC01
1206
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.25 W
鹵 200
200 V
3322 073 30095
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC32H
0402
E12 + Jumper
10鈩?- 1 M鈩?/div>
62
100
0.063 W
鹵 200
50 V
3322 073 30107
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
ARC241
4 x 0603
E6 + Jumper
10鈩?- 1 M鈩?/div>
32
50
0.063 W
鹵 200
50 V
3322 073 30102
ARC241
4 x 0603
E12 + Jumper
10鈩?- 1 M鈩?/div>
62
50
0.063 W
鹵 200
50 V
3322 073 30103
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC11
0805
E6 + jumper
1鈩?- 10 M鈩?/div>
44
50
0.125 W
鹵 200
150 V
3322 073 30093
RC11
0805
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.125 W
鹵 200
150 V
3322 073 30096
Type
Size
Series
Resistor Range
Resistance Values
Resistors Pieces
Maximum Wattage
Temp Coeff (ppm)
Maximum Voltage
Ordering code
RC21
0603
E24 + Jumper
1鈩?- 10 M鈩?/div>
170
50
0.1 W
鹵 200
50 V
3322 073 30097
RC31
0402
E12 + Jumper
10鈩?- 2M2鈩?/div>
66
100
0.063 W
鹵 200
50 V
3322 073 30104
