Package Dimensions
unit : mm
2174A
[2SC5699]
16.0
5.0
High speed.
High breakdown voltage(VCBO=1500V).
High reliability(Adoption of HVP process).
Adoption of MBIT process.
3.4
5.6
3.1
8.0
22.0
21.0
4.0
2.8
2.0
20.4
0.7
0.9
1
2
5.45
3
3.5
0.8
2.1
Specifications
Absolute Maximum Ratings
at Ta=25擄C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Tc=25擄C
Conditions
5.45
1 : Base
2 : Collector
3 : Emitter
SANYO : TO-3PMLH
Ratings
1500
800
5
8
16
3.0
65
150
--55 to +150
Unit
V
V
V
A
A
W
W
擄C
擄C
Electrical Characteristics
at Ta=25擄C
Parameter
Collector Cutoff Current
Collector Cutoff Current
Collector Sustain Voltage
Emitter Cutoff Current
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Symbol
ICBO
ICES
VCEO(sus)
IEBO
VCE(sat)
VBE(sat)
Conditions
VCB=800V, IE=0
VCE=1500V, RBE=0
IC=100mA, IB=0
VEB=4V, IC=0
IC=4.5A, IB=1.13A
IC=4.5A, IB=1.13A
800
1
3
1.5
Ratings
min
typ
max
10
1.0
Unit
碌A(chǔ)
mA
V
mA
V
V

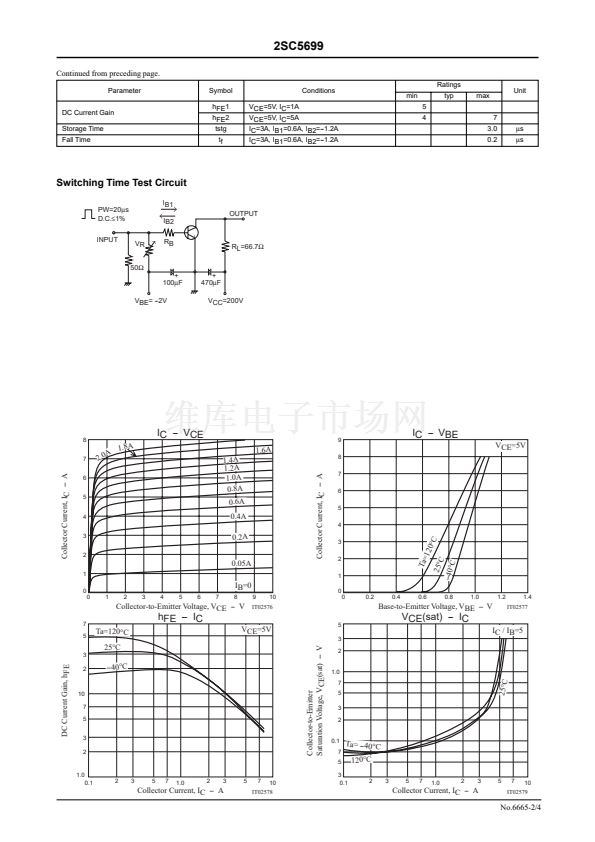

Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
52101 TS IM TA-3147 / 82200 TS IM TA-3015 No.6665-1/4
