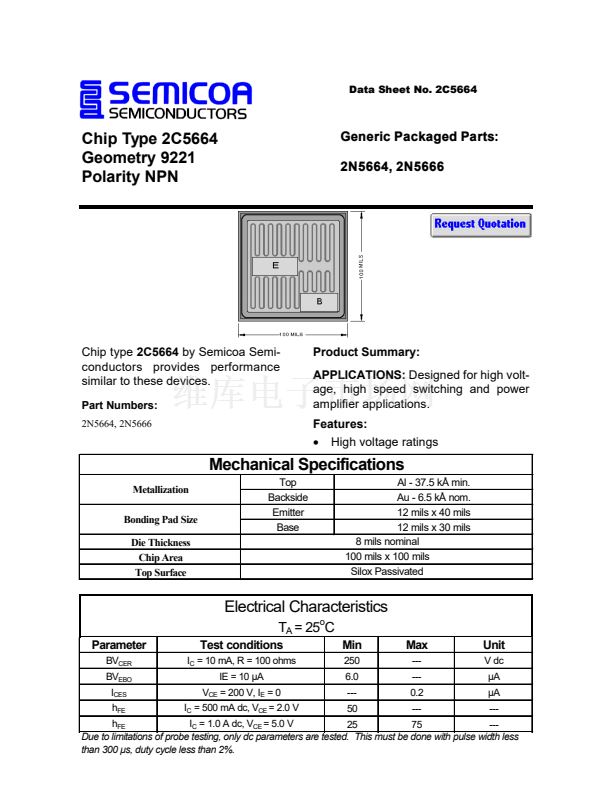

Data Sheet No. 2C5664
Chip Type 2C5664
Geometry 9221
Polarity NPN
Generic Packaged Parts:
2N5664, 2N5666
Chip type
2C5664
by Semicoa Semi-
conductors provides performance
similar to these devices.
Part Numbers:
2N5664, 2N5666
Product Summary:
APPLICATIONS:
Designed for high volt-
age, high speed switching and power
amplifier applications.
Features:
鈥?/div>
High voltage ratings
Mechanical Specifications
Metallization
Bonding Pad Size
Die Thickness
Chip Area
Top Surface
Top
Backside
Emitter
Base
Al - 37.5 k脜 min.
Au - 6.5 k脜 nom.
12 mils x 40 mils
12 mils x 30 mils
8 mils nominal
100 mils x 100 mils
Silox Passivated
Electrical Characteristics
T
A
= 25
o
C
Parameter
BV
CER
BV
EBO
I
CES
h
FE
Test conditions
I
C
= 10 mA, R = 100 ohms
IE = 10 碌A
V
CE
= 200 V, I
E
= 0
I
C
= 500 mA dc, V
CE
= 2.0 V
Min
250
6.0
---
50
Max
---
---
0.2
---
Unit
V dc
碌A
碌A
---
h
FE
I
C
= 1.0 A dc, V
CE
= 5.0 V
25
75
---
Due to limitations of probe testing, only dc parameters are tested. This must be done with pulse width less
than 300 碌s, duty cycle less than 2%.
1
