LAB

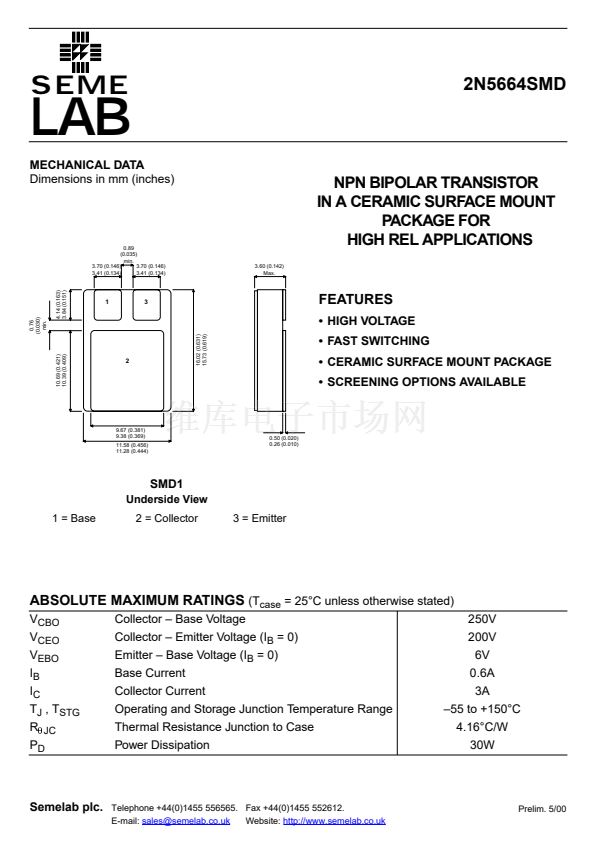

MECHANICAL DATA
Dimensions in mm (inches)
3 .7 0 (0 .1 4 6 )
3 .4 1 (0 .1 3 4 )
0 .8 9
(0 .0 3 5 )
m in .
SEME
2N5664SMD
NPN BIPOLAR TRANSISTOR
IN A CERAMIC SURFACE MOUNT
PACKAGE FOR
HIGH REL APPLICATIONS
3 .6 0 (0 .1 4 2 )
M a x .
3 .7 0 (0 .1 4 6 )
3 .4 1 (0 .1 3 4 )
4 .1 4 (0 .1 6 3 )
3 .8 4 (0 .1 5 1 )
!
FEATURES
鈥?HIGH VOLTAGE
1 6 .0 2 (0 .6 3 1 )
1 5 .7 3 (0 .6 1 9 )
0 .7 6
(0 .0 3 0 )
m in .
鈥?FAST SWITCHING
鈥?CERAMIC SURFACE MOUNT PACKAGE
鈥?SCREENING OPTIONS AVAILABLE
1 0 .6 9 (0 .4 2 1 )
1 0 .3 9 (0 .4 0 9 )
9 .6 7 (0 .3 8 1 )
9 .3 8 (0 .3 6 9 )
1 1 .5 8 (0 .4 5 6 )
1 1 .2 8 (0 .4 4 4 )
0 .5 0 (0 .0 2 0 )
0 .2 6 (0 .0 1 0 )
SMD1
Underside View
1 = Base
2 = Collector
3 = Emitter
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
B
I
C
T
J
, T
STG
R
q
JC
P
D
Collector 鈥?Base Voltage
Collector 鈥?Emitter Voltage (I
B
= 0)
Emitter 鈥?Base Voltage (I
B
= 0)
Base Current
Collector Current
Operating and Storage Junction Temperature Range
Thermal Resistance Junction to Case
Power Dissipation
250V
200V
6V
0.6A
3A
鈥?5 to +150擄C
4.16擄C/W
30W
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 5/00
1
2
