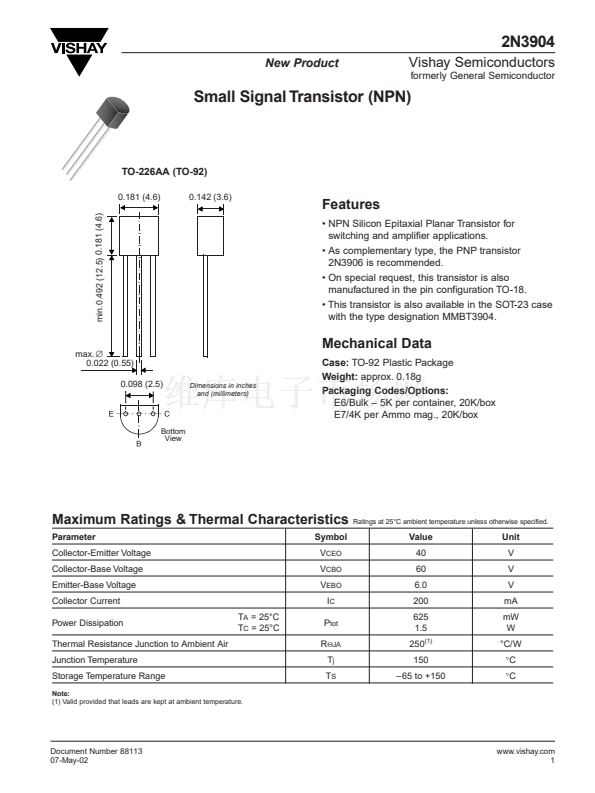

2N3904
New Product
Vishay Semiconductors
formerly General Semiconductor
Small Signal Transistor (NPN)
TO-226AA (TO-92)
0.181 (4.6)
min. 0.492 (12.5) 0.181 (4.6)
0.142 (3.6)
Features
鈥?NPN Silicon Epitaxial Planar Transistor for
switching and amplifier applications.
鈥?As complementary type, the PNP transistor
2N3906 is recommended.
鈥?On special request, this transistor is also
manufactured in the pin configuration TO-18.
鈥?This transistor is also available in the SOT-23 case
with the type designation MMBT3904.
max.
鈭?/div>
0.022 (0.55)
0.098 (2.5)
Dimensions in inches
and (millimeters)
Mechanical Data
Case:
TO-92 Plastic Package
Weight:
approx. 0.18g
Packaging Codes/Options:
E6/Bulk 鈥?5K per container, 20K/box
E7/4K per Ammo mag., 20K/box
Bottom
View
Maximum Ratings & Thermal Characteristics
Parameter
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Thermal Resistance Junction to Ambient Air
Junction Temperature
Storage Temperature Range
Note:
(1) Valid provided that leads are kept at ambient temperature.
Ratings at 25擄C ambient temperature unless otherwise specified.
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
A
= 25擄C
T
C
= 25擄C
P
tot
R
螛JA
T
j
T
S
Value
40
60
6.0
200
625
1.5
250
(1)
150
鈥?5 to +150
Unit
V
V
V
mA
mW
W
擄C/W
擄C
擄C
Document Number 88113
07-May-02
