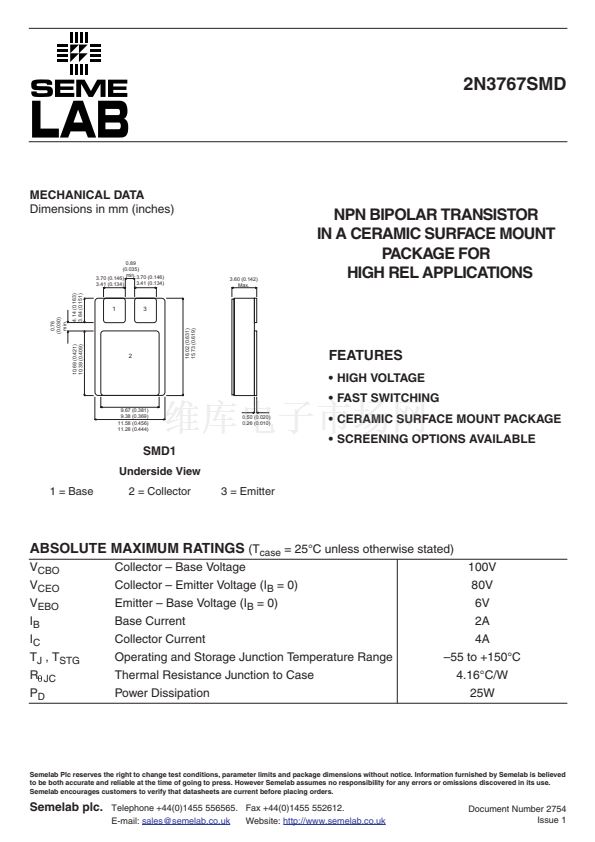

2N3767SMD
MECHANICAL DATA
Dimensions in mm (inches)
0 .8 9
(0 .0 3 5 )
m in .
3 .7 0 (0 .1 4 6 )
3 .7 0 (0 .1 4 6 )
3 .4 1 (0 .1 3 4 )
3 .4 1 (0 .1 3 4 )
4 .1 4 (0 .1 6 3 )
3 .8 4 (0 .1 5 1 )
3 .6 0 (0 .1 4 2 )
M a x .
NPN BIPOLAR TRANSISTOR
IN A CERAMIC SURFACE MOUNT
PACKAGE FOR
HIGH REL APPLICATIONS
1
3
0 .7 6
(0 .0 3 0 )
m in .
1 0 .6 9 (0 .4 2 1 )
1 0 .3 9 (0 .4 0 9 )
1 6 .0 2 (0 .6 3 1 )
1 5 .7 3 (0 .6 1 9 )
2
FEATURES
鈥?HIGH VOLTAGE
鈥?FAST SWITCHING
9 .6
9 .3
1 1 .5
1 1 .2
7 (0
8 (0
8 (0
8 (0
.3 8
.3 6
.4 5
.4 4
1 )
9 )
6 )
4 )
0 .5 0 (0 .0 2 0 )
0 .2 6 (0 .0 1 0 )
鈥?CERAMIC SURFACE MOUNT PACKAGE
鈥?SCREENING OPTIONS AVAILABLE
SMD1
Underside View
1 = Base
2 = Collector
3 = Emitter
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
B
I
C
T
J
, T
STG
R
q
JC
P
D
Collector 鈥?Base Voltage
Collector 鈥?Emitter Voltage (I
B
= 0)
Emitter 鈥?Base Voltage (I
B
= 0)
Base Current
Collector Current
Operating and Storage Junction Temperature Range
Thermal Resistance Junction to Case
Power Dissipation
100V
80V
6V
2A
4A
鈥?5 to +150擄C
4.16擄C/W
25W
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Semelab encourages customers to verify that datasheets are current before placing orders.
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Document Number 2754
Issue 1
1
2
