2N2913
2N2915
2N2917

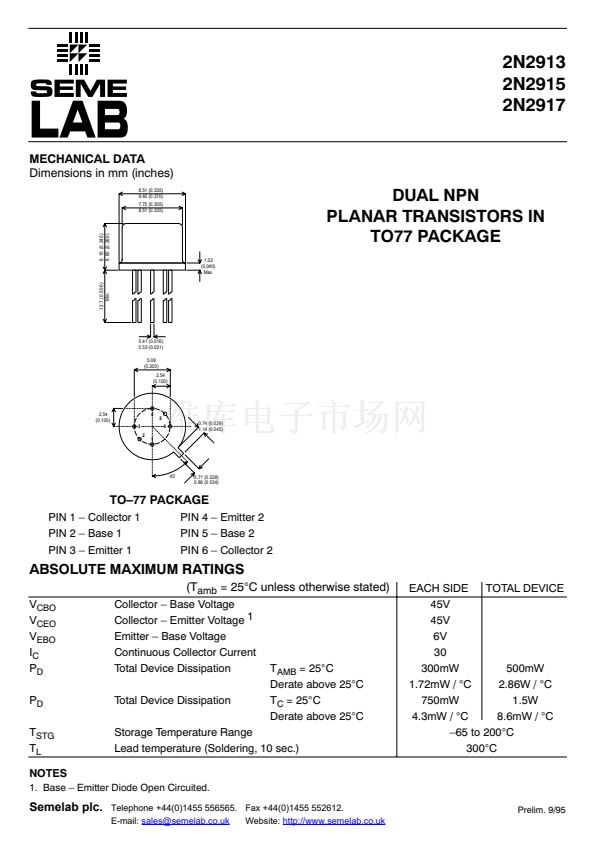

MECHANICAL DATA
Dimensions in mm (inches)
8.51 (0.335)
9.40 (0.370)
7.75 (0.305)
8.51 (0.335)
6.10 (0.240)
6.60 (0.260)
DUAL NPN
PLANAR TRANSISTORS IN
TO77 PACKAGE
1.02
(0.040)
Max.
12.7 (0.500)
Min.
0.41 (0.016)
0.53 (0.021)
5.08
(0.200)
2.54
(0.100)
2.54
(0.100)
3
2
4
5
6
0.74 (0.029)
1.14 (0.045)
1
45藲
0.71 (0.028)
0.86 (0.034)
TO鈥?7 PACKAGE
PIN 1 鈥?Collector 1
PIN 2 鈥?Base 1
PIN 3 鈥?Emitter 1
PIN 4 鈥?Emitter 2
PIN 5 鈥?Base 2
PIN 6 鈥?Collector 2
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
P
D
P
D
T
STG
T
L
NOTES
1. Base 鈥?Emitter Diode Open Circuited.
Collector 鈥?Base Voltage
Collector 鈥?Emitter Voltage 1
Emitter 鈥?Base Voltage
Continuous Collector Current
Total Device Dissipation
Total Device Dissipation
T
AMB
= 25擄C
Derate above 25擄C
T
C
= 25擄C
Derate above 25擄C
Storage Temperature Range
Lead temperature (Soldering, 10 sec.)
EACH SIDE
TOTAL DEVICE
45V
45V
6V
30
300mW
500mW
1.72mW / 擄C
2.86W / 擄C
750mW
1.5W
4.3mW / 擄C
8.6mW / 擄C
鈥?5 to 200擄C
300擄C
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 9/95
