LAB

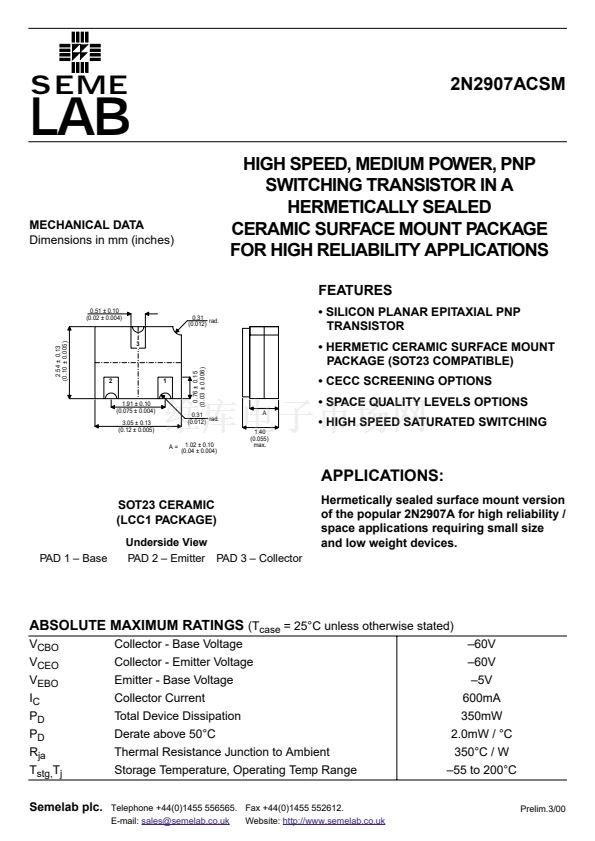

MECHANICAL DATA
Dimensions in mm (inches)
SEME
2N2907ACSM
HIGH SPEED, MEDIUM POWER, PNP
SWITCHING TRANSISTOR IN A
HERMETICALLY SEALED
CERAMIC SURFACE MOUNT PACKAGE
FOR HIGH RELIABILITY APPLICATIONS
FEATURES
0.51 鹵 0.10
(0.02 鹵 0.004)
0.31 rad.
(0.012)
鈥?SILICON PLANAR EPITAXIAL PNP
TRANSISTOR
鈥?HERMETIC CERAMIC SURFACE MOUNT
PACKAGE (SOT23 COMPATIBLE)
鈥?CECC SCREENING OPTIONS
鈥?SPACE QUALITY LEVELS OPTIONS
A
2.54 鹵 0.13
(0.10 鹵 0.005)
3
2
1
1.91 鹵 0.10
(0.075 鹵 0.004)
3.05 鹵 0.13
(0.12 鹵 0.005)
A=
0.31 rad.
(0.012)
0.76 鹵 0.15
(0.03 鹵 0.006)
鈥?HIGH SPEED SATURATED SWITCHING
1.40
(0.055)
max.
1.02 鹵 0.10
(0.04 鹵 0.004)
APPLICATIONS:
SOT23 CERAMIC
(LCC1 PACKAGE)
PAD 1 鈥?Base
Underside View
PAD 2 鈥?Emitter PAD 3 鈥?Collector
Hermetically sealed surface mount version
of the popular 2N2907A for high reliability /
space applications requiring small size
and low weight devices.
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
P
D
P
D
R
ja
T
stg,
T
j
Semelab plc.
Collector - Base Voltage
Collector - Emitter Voltage
Emitter - Base Voltage
Collector Current
Total Device Dissipation
Derate above 50擄C
Thermal Resistance Junction to Ambient
Storage Temperature, Operating Temp Range
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
鈥?0V
鈥?0V
鈥?V
600mA
350mW
2.0mW / 擄C
350擄C / W
鈥?5 to 200擄C
Prelim.3/00
