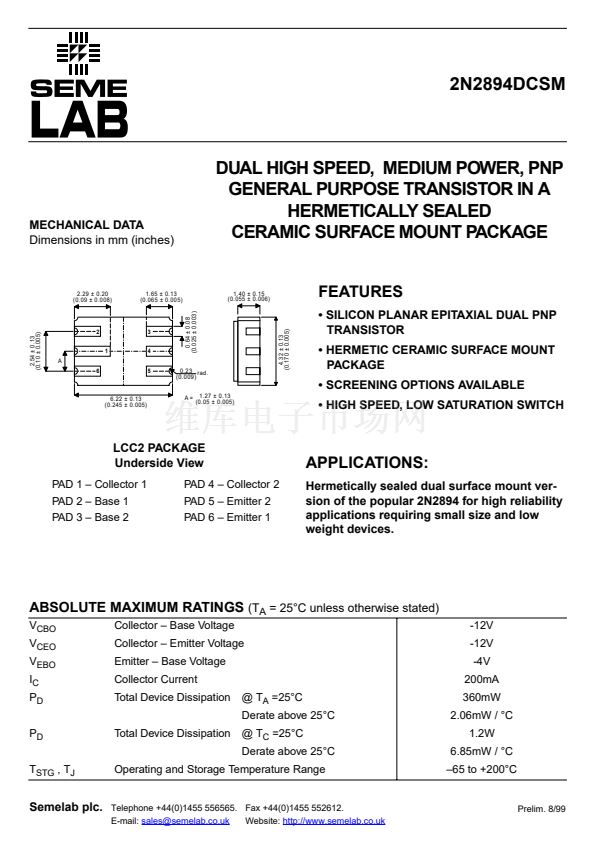

2N2894DCSM
MECHANICAL DATA
Dimensions in mm (inches)
DUAL HIGH SPEED, MEDIUM POWER, PNP
GENERAL PURPOSE TRANSISTOR IN A
HERMETICALLY SEALED
CERAMIC SURFACE MOUNT PACKAGE
FEATURES
4.32 鹵 0.13
(0.170 鹵 0.005)
2.29 鹵 0.20
(0.09 鹵 0.008)
1.65 鹵 0.13
(0.065 鹵 0.005)
0.64 鹵 0.08
(0.025 鹵 0.003)
1.40 鹵 0.15
(0.055 鹵 0.006)
2.54 鹵 0.13
(0.10 鹵 0.005)
2
1
3
4
5
鈥?SILICON PLANAR EPITAXIAL DUAL PNP
TRANSISTOR
鈥?HERMETIC CERAMIC SURFACE MOUNT
PACKAGE
鈥?SCREENING OPTIONS AVAILABLE
鈥?HIGH SPEED, LOW SATURATION SWITCH
A
6
0.23
rad.
(0.009)
1.27 鹵 0.13
(0.05 鹵 0.005)
6.22 鹵 0.13
(0.245 鹵 0.005)
A=
LCC2 PACKAGE
Underside View
PAD 1 鈥?Collector 1
PAD 2 鈥?Base 1
PAD 3 鈥?Base 2
PAD 4 鈥?Collector 2
PAD 5 鈥?Emitter 2
PAD 6 鈥?Emitter 1
APPLICATIONS:
Hermetically sealed dual surface mount ver-
sion of the popular 2N2894 for high reliability
applications requiring small size and low
weight devices.
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
P
D
P
D
T
STG
, T
J
Collector 鈥?Base Voltage
Collector 鈥?Emitter Voltage
Emitter 鈥?Base Voltage
Collector Current
Total Device Dissipation
Total Device Dissipation
@ T
A
=25擄C
Derate above 25擄C
@ T
C
=25擄C
Derate above 25擄C
Operating and Storage Temperature Range
-12V
-12V
-4V
200mA
360mW
2.06mW / 擄C
1.2W
6.85mW / 擄C
鈥?5 to +200擄C
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 8/99
