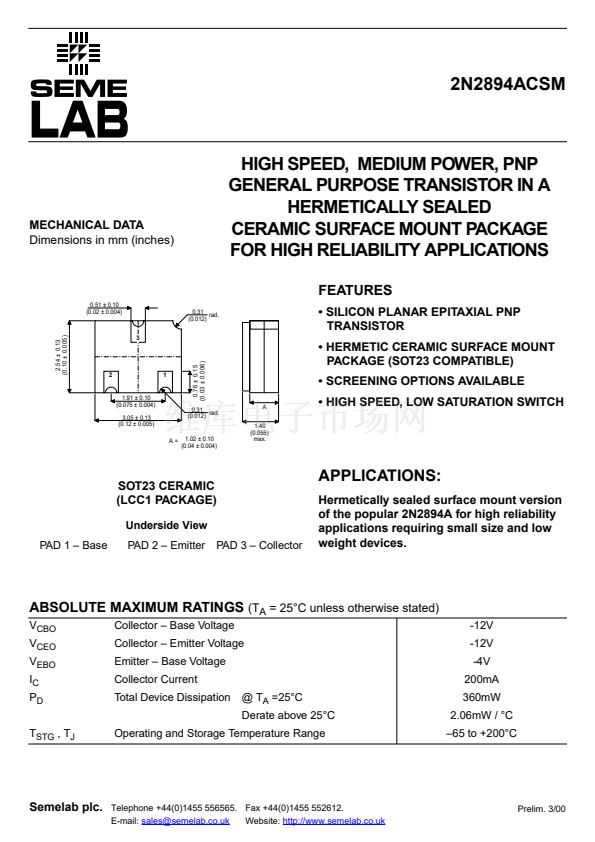

2N2894ACSM
MECHANICAL DATA
Dimensions in mm (inches)
HIGH SPEED, MEDIUM POWER, PNP
GENERAL PURPOSE TRANSISTOR IN A
HERMETICALLY SEALED
CERAMIC SURFACE MOUNT PACKAGE
FOR HIGH RELIABILITY APPLICATIONS
FEATURES
0.51 鹵 0.10
(0.02 鹵 0.004)
0.31 rad.
(0.012)
鈥?SILICON PLANAR EPITAXIAL PNP
TRANSISTOR
鈥?HERMETIC CERAMIC SURFACE MOUNT
PACKAGE (SOT23 COMPATIBLE)
鈥?SCREENING OPTIONS AVAILABLE
A
1.40
(0.055)
max.
2.54 鹵 0.13
(0.10 鹵 0.005)
3
2
1
1.91 鹵 0.10
(0.075 鹵 0.004)
3.05 鹵 0.13
(0.12 鹵 0.005)
A=
0.76 鹵 0.15
(0.03 鹵 0.006)
0.31 rad.
(0.012)
鈥?HIGH SPEED, LOW SATURATION SWITCH
1.02 鹵 0.10
(0.04 鹵 0.004)
SOT23 CERAMIC
(LCC1 PACKAGE)
Underside View
PAD 1 鈥?Base
PAD 2 鈥?Emitter
PAD 3 鈥?Collector
APPLICATIONS:
Hermetically sealed surface mount version
of the popular 2N2894A for high reliability
applications requiring small size and low
weight devices.
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25擄C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
P
D
T
STG
, T
J
Collector 鈥?Base Voltage
Collector 鈥?Emitter Voltage
Emitter 鈥?Base Voltage
Collector Current
Total Device Dissipation
@ T
A
=25擄C
Derate above 25擄C
Operating and Storage Temperature Range
-12V
-12V
-4V
200mA
360mW
2.06mW / 擄C
鈥?5 to +200擄C
Semelab plc.
Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail:
sales@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim. 3/00
