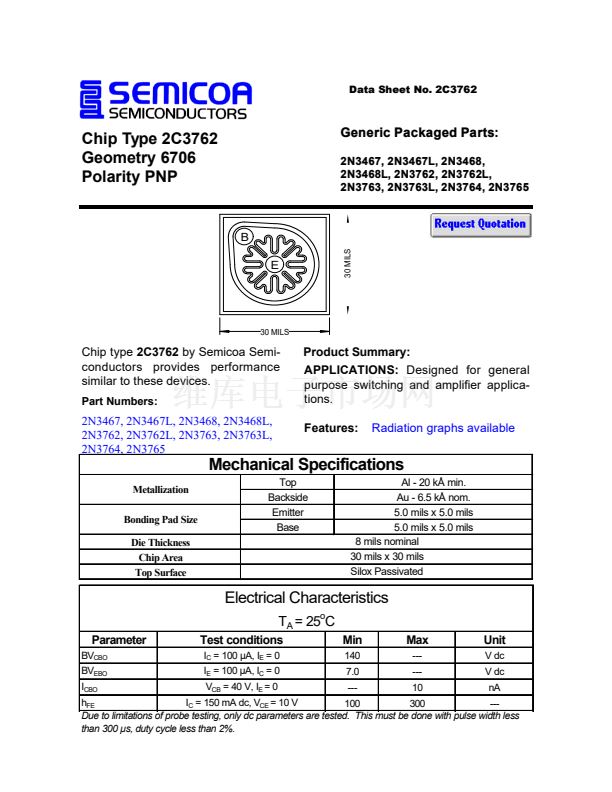

Data Sheet No. 2C3762
Chip Type 2C3762
Geometry 6706
Polarity PNP
Generic Packaged Parts:
2N3467, 2N3467L, 2N3468,
2N3468L, 2N3762, 2N3762L,
2N3763, 2N3763L, 2N3764, 2N3765
B
E
30 MILS
30 MILS
Chip type
2C3762
by Semicoa Semi-
conductors provides performance
similar to these devices.
Part Numbers:
Product Summary:
APPLICATIONS:
Designed for general
purpose switching and amplifier applica-
tions.
Features:
Radiation graphs available
2N3467, 2N3467L, 2N3468, 2N3468L,
2N3762, 2N3762L, 2N3763, 2N3763L,
2N3764, 2N3765
Mechanical Specifications
Metallization
Bonding Pad Size
Die Thickness
Chip Area
Top Surface
Top
Backside
Emitter
Base
Al - 20 k脜 min.
Au - 6.5 k脜 nom.
5.0 mils x 5.0 mils
5.0 mils x 5.0 mils
8 mils nominal
30 mils x 30 mils
Silox Passivated
Electrical Characteristics
T
A
= 25 C
Parameter
BV
CBO
BV
EBO
I
CBO
o
Test conditions
I
C
= 100 碌A(chǔ), I
E
= 0
I
E
= 100 碌A(chǔ), I
C
= 0
V
CB
= 40 V, I
E
= 0
Min
140
7.0
---
Max
---
---
10
Unit
V dc
V dc
nA
h
FE
I
C
= 150 mA dc, V
CE
= 10 V
100
300
---
Due to limitations of probe testing, only dc parameters are tested. This must be done with pulse width less
than 300 碌s, duty cycle less than 2%.
