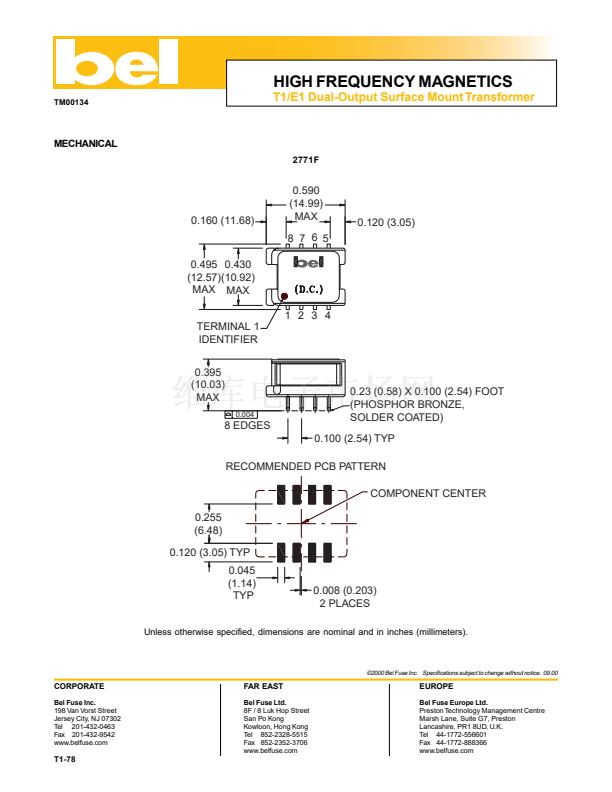

HIGH FREQUENCY MAGNETICS
T1/E1 Dual-Output Surface Mount Transformer
鈥?/div>
Operates at T1 rate of 1.544 Mb/s and the E1 rate of
2.048 Mb/s
Two center-tapped secondary windings provide two
output signals from a single input
Minimum interwinding breakdown voltage of 1500
Vrms
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Operating temperature range: -40擄C to +85擄 C
Meets IEC 695, 2-2 flammability requirements
PWB Process Capability: standard printed wiring board
assembly techniques, total-immersion cleaning
Reliability testing: Shock, vibration, temperature cycling,
temperature - humidity - bias
TM00134
鈥?/div>
鈥?/div>
ELECTRICAL SPECIFICATIONS AT 25擄 C
Turns Ratio
鹵2%
Part Number
(4-5):(1-3)
2771F
1 : 2CT
(4-5):(8-6)
1 : 2CT
(4-5)
3.1
Inductance
1
mH min
Leakage
Inductance
2
碌H max
(4-5)
5
(4-5)
1.8
DCR
Interwinding Capacitance
pF
鈩?/div>
max
(3-1)
3.2
(8-6)
4.0
(4-5) : (1-3)
20
(4-5) : (8-6)
25
1. measured at 10 kHz, 0.1 V
2. measured at 100 kHz
SCHEMATIC
2771F
1
4
2
3
8
7
6
1 : 2 CT : 2 CT
5
漏2000 Bel Fuse Inc. Specifications subject to change without notice. 09.00
Bel Fuse Inc.
198 Van Vorst Street, Jersey City, NJ 07302 鈥?Tel 201-432-0463 鈥?Fax 201-432-9542 鈥?www.belfuse.com
T1-77
