24C1024 Datasheet

  • 24C1024

  • 2-wire Serial EEPROM 1M (131,072 x 8)

  • 19頁

  • ATMEL   ATMEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Features
鈥?/div>
Low-voltage Operation
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?2.7 (V
CC
= 2.7V to 5.5V)
Internally Organized 131,072 x 8
2-wire Serial Interface
Schmitt Triggers, Filtered Inputs for Noise Suppression
Bi-directional Data Transfer Protocol
400 kHz (2.7V) and 1 MHz (5V) Clock Rate
Write Protect Pin for Hardware and Software Data Protection
256-byte Page Write Mode (Partial Page Writes Allowed)
Random and Sequential Read Modes
Self-timed Write Cycle (5 ms Typical)
High Reliability
鈥?Endurance: 100,000 Write Cycles/Page
鈥?Data Retention: 40 Years
8-lead PDIP, 8-lead EIAJ SOIC, 8-lead LAP and 8-ball dBGA
TM
Packages
2-wire Serial
EEPROM
1M (131,072 x 8)
Description
The AT24C1024 provides 1,048,576 bits of serial electrically erasable and program-
mable read only memory (EEPROM) organized as 131,072 words of 8 bits each. The
device鈥檚 cascadable feature allows up to 2 devices to share a common 2-wire bus. The
device is optimized for use in many industrial and commercial applications where low-
power and low-voltage operation are essential. The devices are available in space-
saving 8-lead PDIP, 8-lead EIAJ SOIC, 8-lead Leadless Array (LAP) and 8-ball dBGA
packages. In addition, the entire family is available in 2.7V (2.7V to 5.5V) versions.
AT24C1024
8-lead PDIP
Pin Configurations

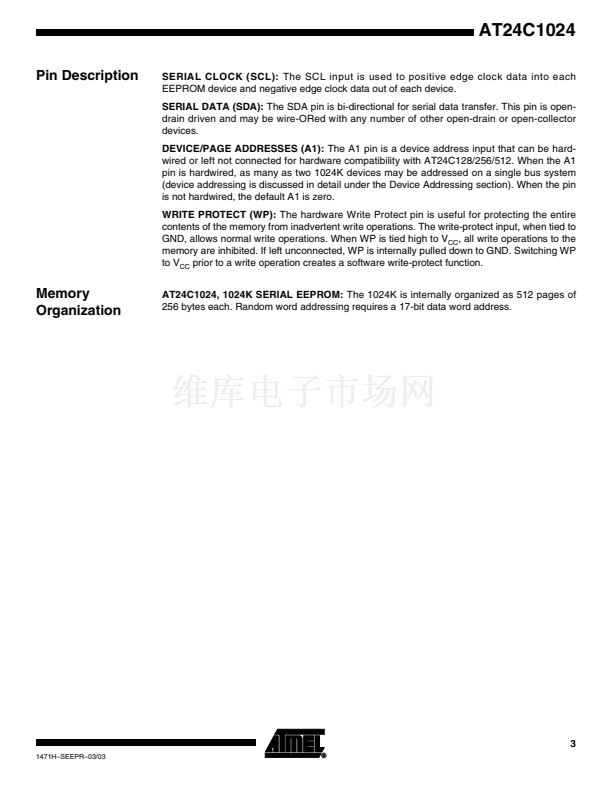

Pin Name
A1
SDA
SCL
WP
NC
Function
Address Input
Serial Data
Serial Clock Input
Write Protect
No Connect
NC
A1
NC
GND
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
8-lead Leadless Array
VCC
WP
SCL
SDA
8
7
6
5
1
2
3
4
NC
A1
NC
GND
8-lead SOIC
NC
A1
NC
GND
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
Bottom View
8-ball dBGA
VCC
WP
SCL
SDA
8
7
6
5
1
2
3
4
NC
A1
NC
GND
Rev. 1471H鈥揝EEPR鈥?3/03
Bottom View
1
