23C256 Datasheet

  • 23C256

  • NAND INTERFACE 256M-BIT MASK-PROGRAMMABLE ROM

  • 32頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD23C256112A
NAND INTERFACE
256M-BIT MASK-PROGRAMMABLE ROM
Description
The
碌
PD23C256112A is a 256 Mbit NAND interface programmable mask read-only memory that operates with a
single power supply. The memory organization consists of (512 + 16 (Redundancy)) bytes x 32 pages x 2,048 blocks.
The
碌
PD23C256112A is a serial type mask ROM in which addresses and commands are input and data output
serially via the I/O pins.
The
碌
PD23C256112A is packed in 48-pin PLASTIC TSOP(I).
Features
鈥?/div>
Word organization
(33,554,432 + 1,048,576
鈥?/div>
Page size
(512 + 16
鈥?/div>
Block size
(16,384 + 512
Note
Note
Note
) words by 8 bits
) by 8 bits
) by 8 bits
Note
Underlined parts are redundancy.
Caution Redundancy is not programmable parts and is fixed to all FFH.
鈥?/div>
Operation mode

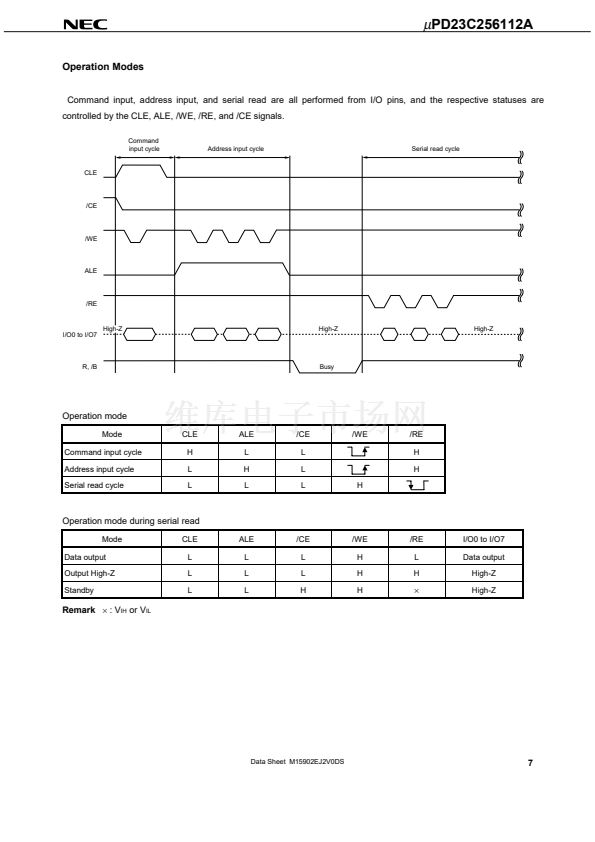

READ mode (1), READ mode (2), READ mode (3), RESET, STATUS READ, ID READ
鈥?/div>
Operating supply voltage : V
CC
= 3.3
鹵
0.3 V
鈥?/div>
Access Time
Memory cell array to starting address
Read cycle time
/RE access time
鈥?/div>
Operating supply current
During read
: 30 mA (MAX.) (50 ns cycle operation)
During standby (CMOS) : 100
碌
A (MAX.)
Ordering Information
Part Number
: 7
碌
s (MAX.)
: 50 ns (MIN.)
: 35 ns (MAX.)
Package

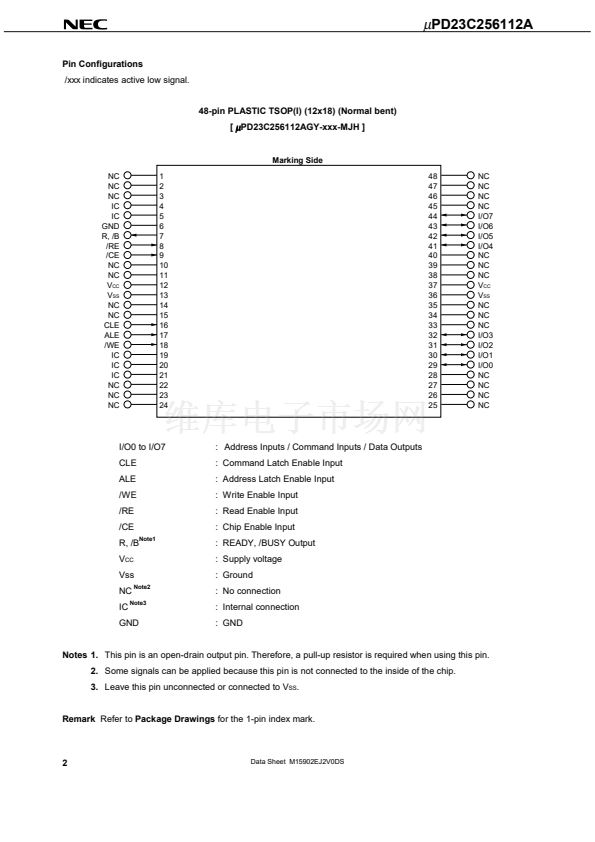

48-pin PLASTIC TSOP(I) (12x18) (Normal bent)

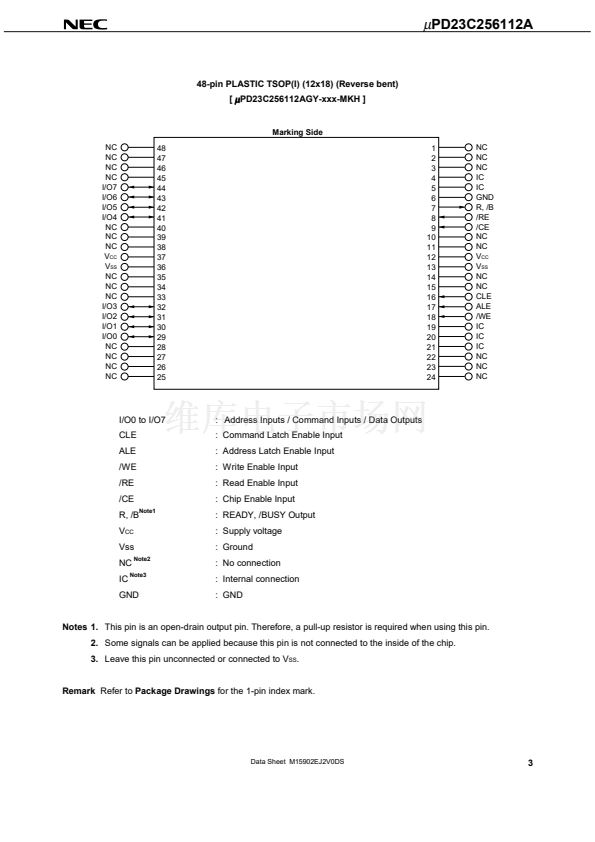

48-pin PLASTIC TSOP(I) (12x18) (Reverse bent)
碌
PD23C256112AGY-xxx-MJH
碌
PD23C256112AGY-xxx-MKH
(xxx : ROM code suffix No.)

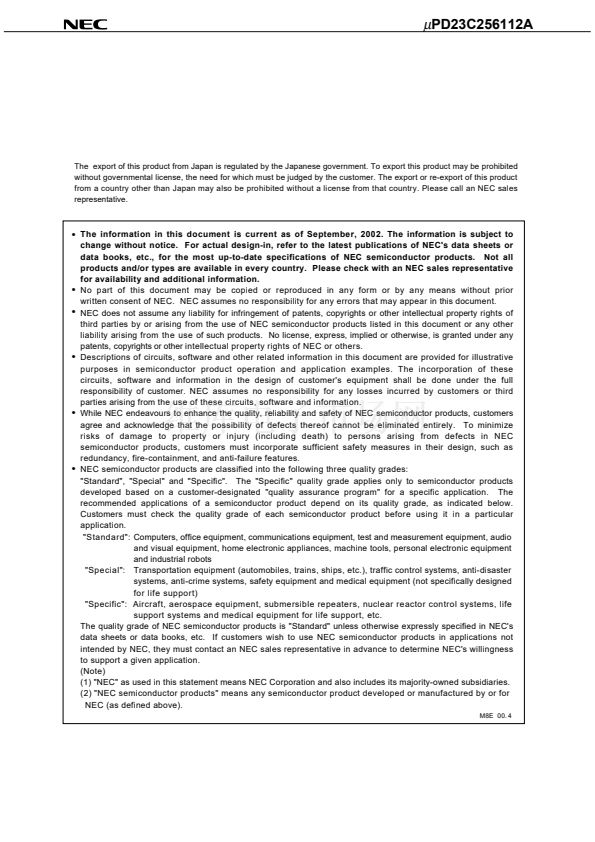

The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. M15902EJ2V0DS00 (2nd edition)
Date Published September 2002 NS CP (K)
Printed in Japan
The mark
5
shows major revised points.
漏
2001
