Fixed Coaxial Attenuators

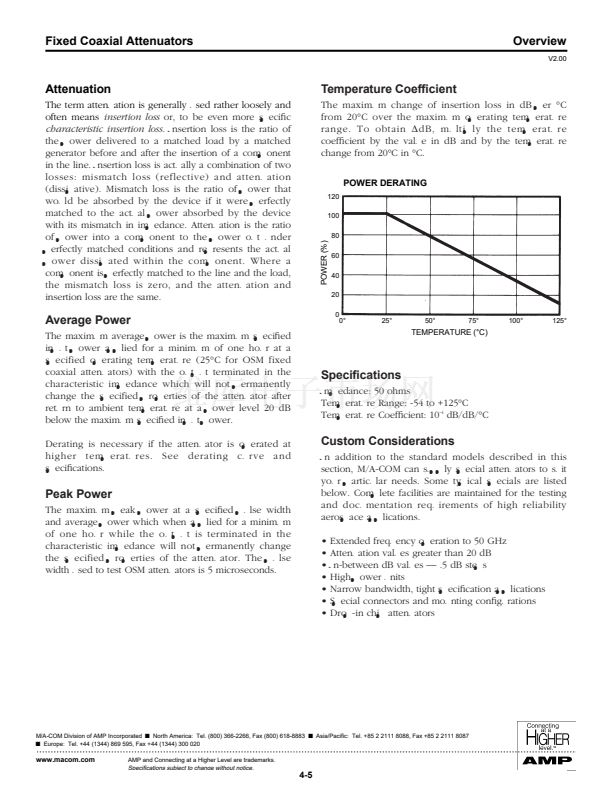

Overview
V2.00
V1.01
q
q
q
q
q
dc - 1GHz, dc - 2.5 GHz, dc - 4, dc - 12.4, dc - 18 and
dc - 26.5 GHz Performance
Temperature Range: -54擄 to +125擄C
Temperature Coef鏗乧ient: 10
-4
dB/dB/擄C
Average Power: Up to 20 Watts
Connectors: SMA, Type N, TNC
Typical Performance Part No. 2082-6191-03
VSWR
1.40
1.35
1.30
Attenuators are linear, passive transmission line compo-
nents designed to reduce the input power in a matched
system by a predetermined amount. M/A-COM offers a
complete line of 鏗亁ed coaxial attenuators designed for
laboratory, production, testing and system use. Typical
applications include VSWR reduction at the insertion
point of measurement setups, range extension of power
meters, RF path loss simulation, and isolation or power
level reduction of signal sources. The attenuator charac-
teristics of primary concern are:
a. frequency range
b. attenuation
c. average and peak power handling capability
d. operating temperature range
e. size
f. weight
VSWR
1.25
1.20
1.15
1.10
1.05
dc
2
4
6
8
10
12
14
16
18
FREQUENCY (GH
Z
)
ATTENUATION
3.4
3.3
ATTENUATION (dB)
3.2
3.1
3.0
2.9
2.8
2.7
All attenuators are production tested to ensure proper
operation within published speci鏗乧ations. Therefore, over
speci鏗乧ation by the user is unnecessary and reduces cost-
effectiveness. For example, if the frequency range
requirements are 2 to 4 GHz, over-specifying 鏗俛t perfor-
mance to 12.4 GHz will increase component cost with no
performance advantage.
Catalog attenuators are available in a variety of package
sizes and connector con鏗乬urations as shown on the fol-
lowing pages. The attenuator elements are designed to
provide broadband operation with low frequency sensi-
tivity and extremely stable operation at temperature
extremes.
dc
2
4
6
8
10
12
14
16
18
FREQUENCY (GH
Z
)
OSM is a registered trademark of M/A-COM
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Paci鏗乧: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Speci鏗乧ations subject to change without notice.
4-4
