Fixed Coaxial Attenuators
V 3.00

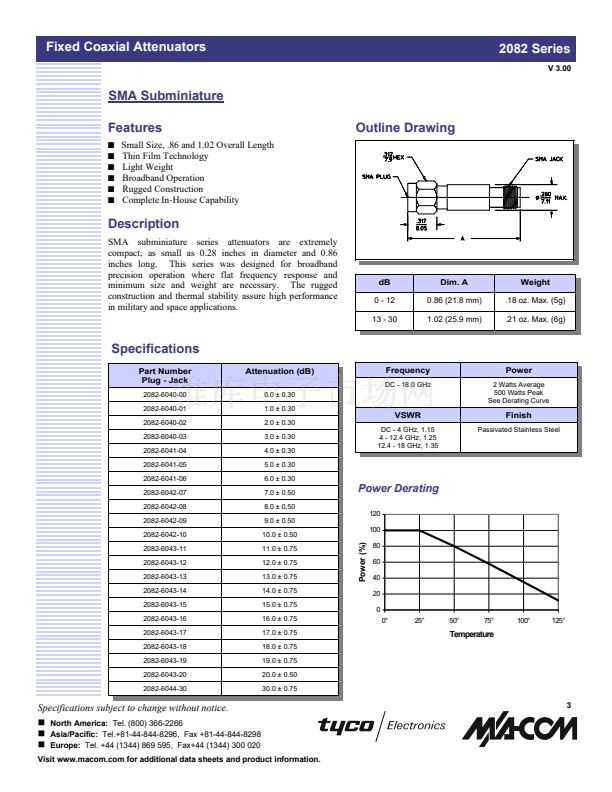

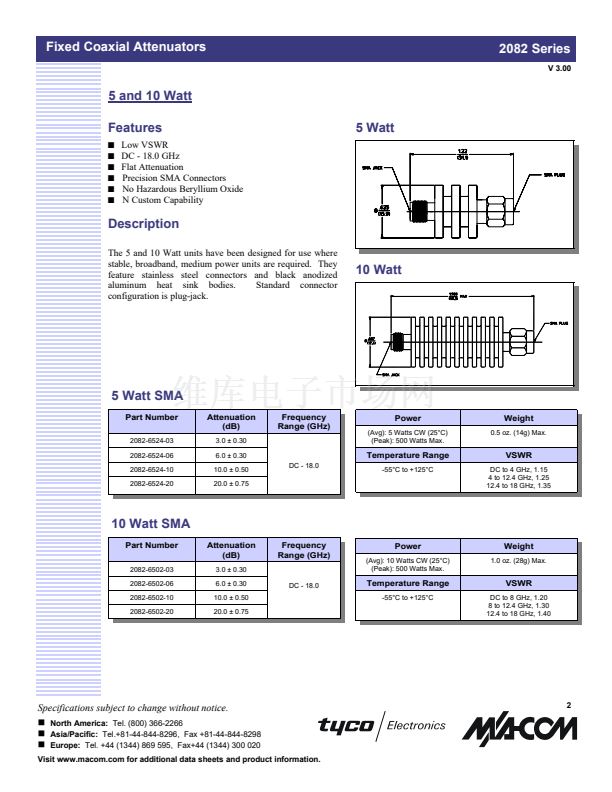

2082 Series
OSM (SMA) Miniature
Features
n
DC - 18 GHz, Round Body
n
Thin Film Technology
n
Complete In-House Capability
n
Broadband Operation
Outline Drawing
Description
SMA Miniature series fixed attenuators offer precision
reliable performance in a compact package. Maximum
electrical flexibility can be achieved by choosing the proper
unit from the series listed below.
Rugged
construction and thermal stability assure high performance
in military and space applications.
dB
0 - 30
Dim. A
1.24 (31.5 mm)
Weight
.26 oz. Max. (8g)
NOTE: All dimensions are 鹵 .020, except mounting hole
diameters (鹵 .005) and mounting hole locations (鹵 .010).
Specifications
Part Number
Plug - Jack
2082-6191-00
2082-6191-01
2082-6191-02
2082-6191-03
2082-6192-04
2082-6192-05
2082-6192-06
2082-6193-07
2082-6193-08
2082-6193-09
2082-6193-10
2082-6194-11
2082-6194-12
2082-6194-13
2082-6194-14
2082-6194-15
2082-6194-16
2082-6194-17
2082-6194-18
2082-6194-19
2082-6194-20
2082-6195-30
Attenuation (dB)
0.0 + 0.30
1.0 + 0.30
2.0 + 0.30
3.0 鹵 0.30
4.0 鹵 0.30
5.0 鹵 0.30
6.0 鹵 0.30
7.0 鹵 0.50
8.0 鹵 0.50
9.0 鹵 0.50
10.0 鹵 0.50
Frequency
DC - 18.0 GHz
Power
2 Watts Average
500 Watts Peak
See Derating Curve
VSWR
DC - 4 GHz, 1.15
4 - 12.4 GHz, 1.25
12.4 - 18 GHz, 1.35
Finish
Passivated Stainless Steel
Power Derating
120
100
Power (%)
11.0 鹵 0.75
12.0 鹵 0.75
13.0 鹵 0.75
14.0 鹵 0.75
15.0 鹵 0.75
16.0 鹵 0.75
17.0 鹵 0.75
18.0 鹵 0.75
19.0 鹵 0.75
20.0 鹵 0.50
30.0 鹵 0.75
80
60
40
20
0
0擄
25擄
50擄
75擄
100擄
125擄
Temperature
1
2
3
4
