2.35002E+11 Datasheet

  • 2.35002E+11

  • RESISTOR ARRAY 100K

  • 39.88KB

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Philips Components
Product speci鏗乧ation
Array chip resistors
size 4
脳
0603
FEATURES
鈥?/div>
4
脳
0603 sized resistors in one
1206-sized package
鈥?/div>
Reduced reel exchange time
鈥?/div>
Low assembly costs
鈥?/div>
Reduced PCB area
鈥?/div>
Reduced size of final equipment.
APPLICATIONS
鈥?/div>
Computers
鈥?/div>
Microcomputer driven applications:
鈥?Portable radios
鈥?CD and cassette players
鈥?Car telephones
鈥?Camcorders
鈥?Cordless, cellular phones.
QUICK REFERENCE DATA
VALUE
DESCRIPTION
ARC241
Resistance range
Resistance tolerance and E-series
Temperature coef鏗乧ient
Absolute maximum dissipation per resistive element
at T
amb
= 70
擄C
Maximum permissible voltage
Climatic category (IEC 60068)
Basic speci鏗乧ation
R-Array overview
TYPE
ARC241
ARC242
ARV241
TERMINATION
TECHNOLOGY
concave
concave
convex
SIZE
4
脳
0603
4
脳
0603
4
脳
0603
鹵5%;
E24 series
鈮ぢ?00 脳
10
鈭?
/K
0.063 W
50 V (DC or RMS)
55/155/56
IEC 60115-8
ARV241
10
鈩?/div>
to 1 M鈩?/div>
DESCRIPTION
The resistors are constructed on a
high grade ceramic body (aluminium
oxide). Internal metal electrodes are
added at each end and connected by
a resistive paste which is applied to
the top surface of the substrate. The
composition of the paste is adjusted
to give the approximate resistance
required and the value is trimmed to
within tolerance, by laser cutting of
this resistive layer.
The resistive layer is covered with a
protective coating and printed with the
resistance value. Finally, external end
terminations are added. For ease of
soldering the outer layer of these end
terminations is a lead/tin alloy.
ARC241/242
ARV241
handbook, 2 columns
R1
R2
R3
R4
CCA862
R1 = R2 = R3 = R4.

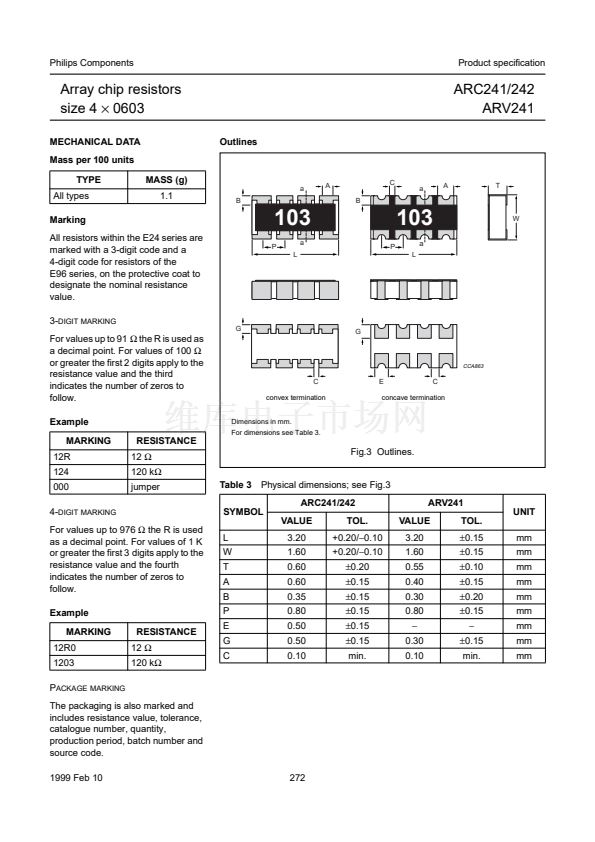

For dimensions see Fig.3 and Table 3.
Fig.1 Equivalent circuit diagram.
ARC242
鹵1%;
E96 series
鈮ぢ?00 脳
10
鈭?
/K
TOLERANCE
(%)
5
1
5
1999 Feb 10
269
