1SMB5.0AT3 Series

600 Watt Peak Power Zener

Transient Voltage Suppressors

Unidirectional*

The SMB series is designed to protect voltage sensitive

components from high voltage, high energy transients. They have

excellent clamping capability, high surge capability, low zener

impedance and fast response time. The SMB series is supplied in

ON Semiconductor鈥檚 exclusive, cost-effective, highly reliable

Surmetic鈩?package and is ideally suited for use in communication

systems, automotive, numerical controls, process controls, medical

equipment, business machines, power supplies and many other

industrial/consumer applications.

Specification Features:

http://onsemi.com

鈥?/div>

PLASTIC SURFACE MOUNT

ZENER OVERVOLTAGE

TRANSIENT SUPPRESSORS

5.0鈥?70 VOLTS

600 WATT PEAK POWER

Working Peak Reverse Voltage Range 鈥?5.0 V to 170 V

Standard Zener Breakdown Voltage Range 鈥?6.7 V to 199 V

Peak Power 鈥?600 Watts @ 1 ms

ESD Rating of Class 3 (>16 KV) per Human Body Model

Maximum Clamp Voltage @ Peak Pulse Current

Low Leakage < 5

碌A(chǔ)

Above 10 V

UL 497B for Isolated Loop Circuit Protection

Response Time is Typically < 1 ns

Cathode

Anode

Mechanical Characteristics:

CASE:

Void-free, transfer-molded, thermosetting plastic

FINISH:

All external surfaces are corrosion resistant and leads are

SMB

CASE 403A

PLASTIC

readily solderable

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:

MARKING DIAGRAM

YWW

xx

Y

WW

xx

= Year

= Work Week

= Specific Device Code

=

(See Table Page 3)

260擄C for 10 Seconds

LEADS:

Modified L鈥揃end providing more contact area to bond pads

POLARITY:

Cathode indicated by polarity band

MOUNTING POSITION:

Any

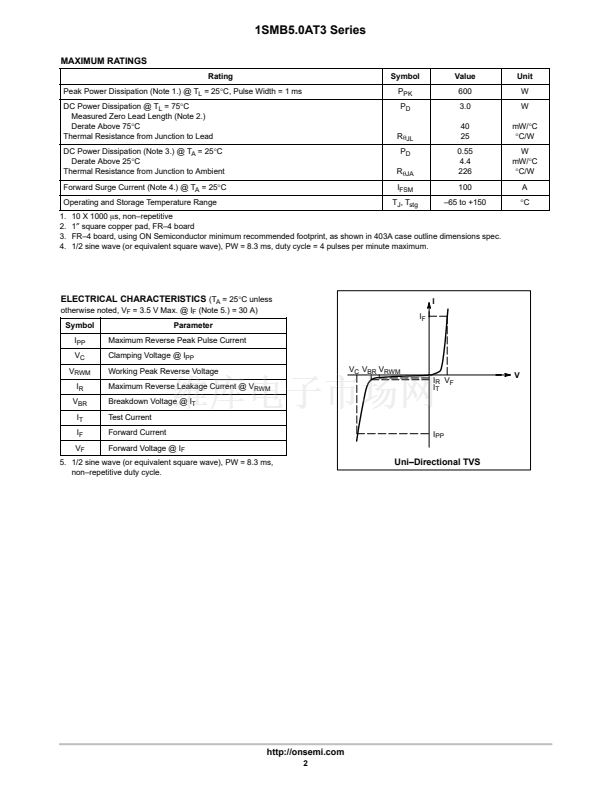

MAXIMUM RATINGS

Please See the Table on the Following Page

ORDERING INFORMATION

*Please see 1SMB10CAT3 to 1SMB78CAT3 for Bidirectional devices.

Device

{

1SMBxxxAT3

Package

SMB

Shipping

2500/Tape & Reel

Devices listed in

bold, italic

are ON Semiconductor

Preferred

devices.

Preferred

devices are recommended

choices for future use and best overall value.

鈥燭he 鈥淭3鈥?suffix refers to a 13 inch reel.

漏

Semiconductor Components Industries, LLC, 2001

1

May, 2001 鈥?Rev. 4

Publication Order Number:

1SMB5.0AT3/D
