1PMT5920BT3/D Datasheet

  • 1PMT5920BT3/D

  • 3.2 Watt Plastic Surface Mount POWERMITE? Package

  • 8頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

1PMT5920BT3 Series
3.2 Watt Plastic
Surface Mount
POWERMITE
廬
Package
This complete new line of 3.2 Watt Zener Diodes are offered in
highly efficient micro miniature, space saving surface mount with its
unique heat sink design. The POWERMITE package has the same
thermal performance as the SMA while being 50% smaller in
footprint area and delivering one of the lowest height profiles (1.1
mm) in the industry. Because of its small size, it is ideal for use in
cellular phones, portable devices, business machines and many other
industrial/consumer applications.
Specification Features:
http://onsemi.com
PLASTIC SURFACE MOUNT
3.2 WATT ZENER DIODES
6.2 鈥?47 VOLTS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Zener Breakdown Voltage: 6.2 鈥?47 Volts
DC Power Dissipation: 3.2 Watts with Tab 1 (Cathode) @ 75擄C
Low Leakage < 5
碌A(chǔ)
ESD Rating of Class 3 (> 16 kV) per Human Body Model
Low Profile 鈥?Maximum Height of 1.1 mm
Integral Heat Sink/Locking Tabs
Full Metallic Bottom Eliminates Flux Entrapment
Small Footprint 鈥?Footprint Area of 8.45 mm
2
Supplied in 12 mm Tape and Reel 鈥?12,000 Units per Reel
POWERMITE is JEDEC Registered as DO鈥?16AA
Cathode Indicated by Polarity Band
1
1: CATHODE
2: ANODE
2
1
2

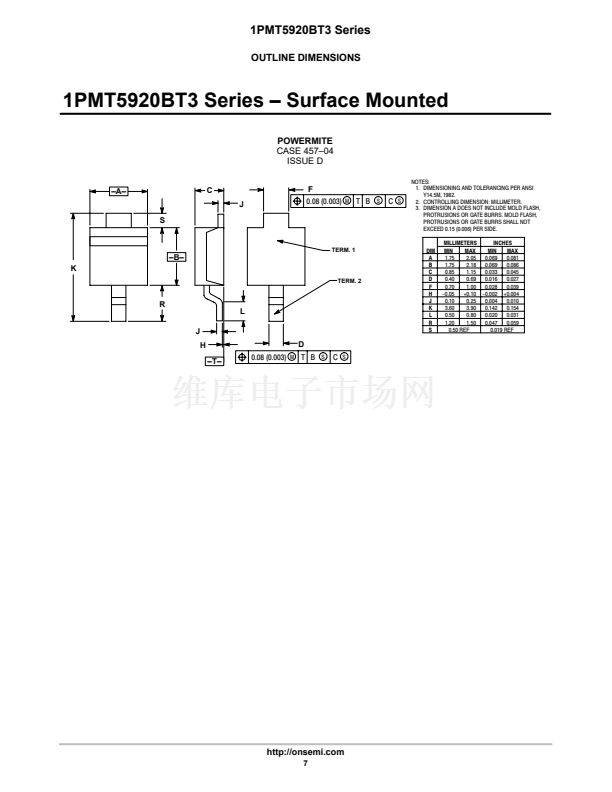

POWERMITE
CASE 457
PLASTIC
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
MARKING DIAGRAM
D
2
ANODE
readily solderable
MOUNTING POSITION:
Any
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
1
CATHODE
xxB
xx
D
xxB
260擄C for 10 Seconds
= Specific Device Code
= 20 鈥?41
=
(See Table Next Page)
= Date Code
ORDERING INFORMATION
Device
Package
Shipping
1PMT59xxBT3 POWERMITE 12,000/Tape & Reel
LEAD ORIENTATION IN TAPE:
Cathode (Short) Lead to Sprocket Holes
漏
Semiconductor Components Industries, LLC, 2001
1
May, 2001 鈥?Rev. 3
Publication Order Number:
1PMT5920BT3/D
