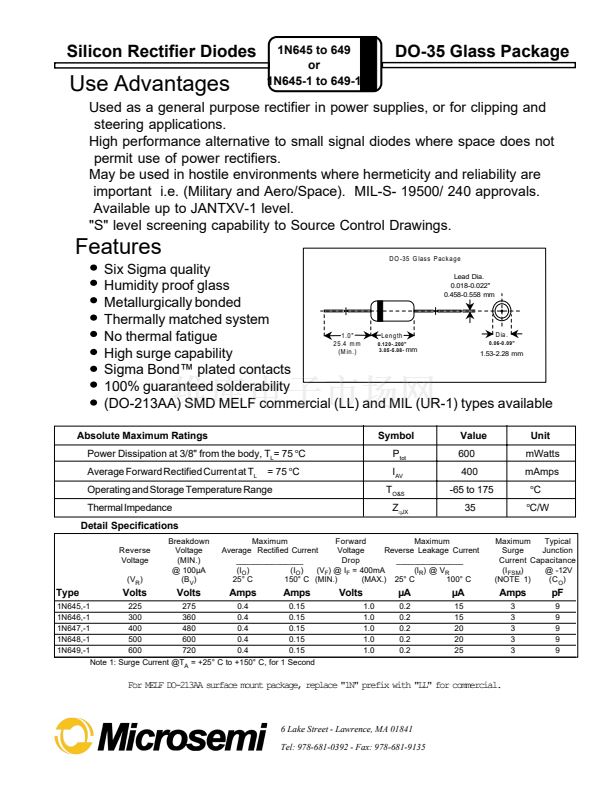

Silicon Rectifier Diodes
Use Advantages
1N645 to 649
or
1N645-1 to 649-1
DO-35 Glass Package
Used as a general purpose rectifier in power supplies, or for clipping and
steering applications.
High performance alternative to small signal diodes where space does not
permit use of power rectifiers.
May be used in hostile environments where hermeticity and reliability are
important i.e. (Military and Aero/Space). MIL-S- 19500/ 240 approvals.
Available up to JANTXV-1 level.
"S" level screening capability to Source Control Drawings.
Features
D O -3 5 G la ss P a ck a g e
Six Sigma quality
Lead Dia.
0.018-0.022"
Humidity proof glass
0.458-0.558 mm
Metallurgically bonded
Thermally matched system
D ia .
1 .0 "
L e n g th
No thermal fatigue
2 5 .4 m m
mm
(M in .)
1.53-2.28 mm
High surge capability
Sigma Bond鈩?plated contacts
100% guaranteed solderability
(DO-213AA) SMD MELF commercial (LL) and MIL (UR-1) types available
0.12 0-.200 "
3.05 -5 .08-
0.06 -0 .09"
Absolute Maximum Ratings

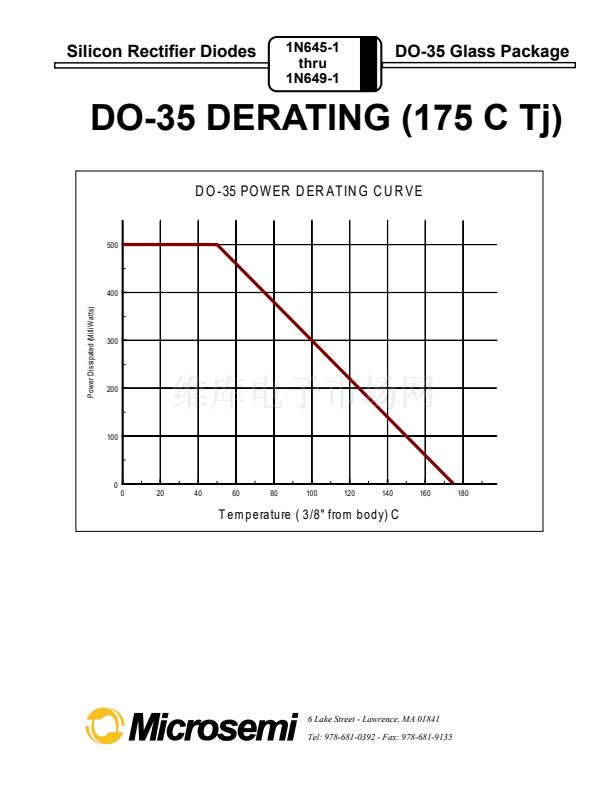

Power Dissipation at 3/8" from the body, T
L
= 75
o
C
Average Forward Rectified Current at T
L
Thermal Impedance
Detail Specifications
Reverse
Voltage
(V
R
)
Breakdown
Voltage
(MIN.)
@ 100碌A(chǔ)
(B
V
)
Symbol
P
tot
I
AV
T
O&S
Z
qJX
Value
600
400
-65 to 175
35
o
Unit
mWatts
mAmps
o
= 75
o
C
Operating and Storage Temperature Range
C
C/W
Maximum
Forward
Maximum
Average Rectified Current
Voltage

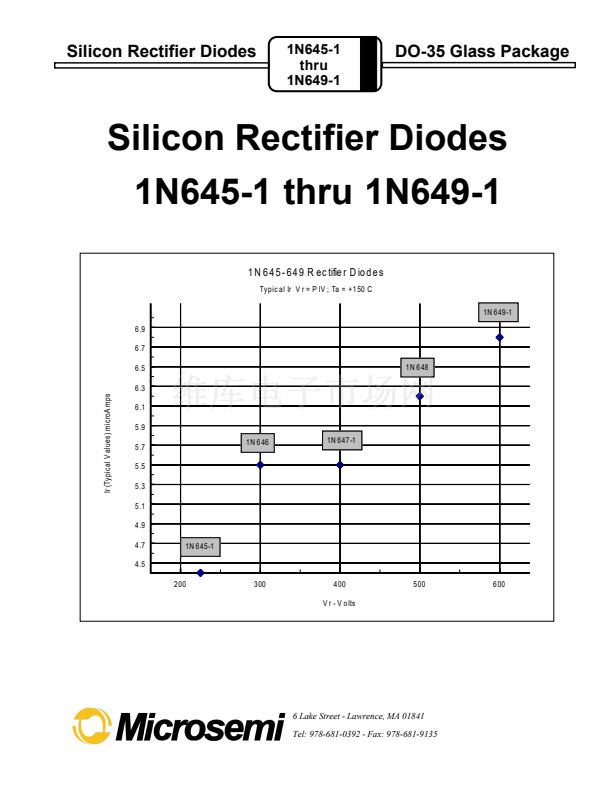

Reverse Leakage Current
_______________
Drop
_______________
(I
O
)
(I
O
)
(V
F
) @ I
F
= 400mA
(I
R
) @ V
R
25擄 C
150擄 C (MIN.)
(MAX.) 25擄 C
100擄 C
Maximum
Typical
Surge
Junction
Current Capacitance
(I
FSM
)
@ -12V
(NOTE 1)
(C
O
)
Type
1N645,-1
1N646,-1
1N647,-1
1N648,-1
1N649,-1
Volts
225
300
400
500
600
Volts
275
360
480
600
720
Amps
0.4
0.4
0.4
0.4
0.4
Amps
0.15
0.15
0.15
0.15
0.15
Volts
1.0
1.0
1.0
1.0
1.0
碌A(chǔ)
0.2
0.2
0.2
0.2
0.2
碌A(chǔ)
15
15
20
20
25
Amps
3
3
3
3
3
pF
9
9
9
9
9
Note 1: Surge Current @T
A
= +25擄 C to +150擄 C, for 1 Second
For MELF DO-213AA surface mount package, replace "1N" prefix with "LL" for commercial.
6 Lake Street - Lawrence, MA 01841
Tel: 978-681-0392 - Fax: 978-681-9135
