1N6461
QPL
500 Watt Axial Leaded TVS
Thru
1N6468
TEL:805-498-2111 FAX:805-498-3804
DESCRIPTION
The 1N64xx series of transient voltage suppressors are
designed to protect military and commercial electronic
equipment from overvoltages caused by lightning, ESD,
EFT, inductive load switching, and EMP. These devices are
constructed using a p-n junction TVS diode in a
hermetically sealed, voidless glass package. The
hermetically sealed package provides high reliability in
harsh environmental conditions. TVS diodes are further
characterized by their high surge capability, low operating
and clamping voltages, and a theoretically instantaneous
response time. This makes them ideal for use as board
level protection for sensitive semiconductor components.
These devices are DESC QPL qualified to
MIL-S-19500/551.
FEATURES:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
500 Watts Peak Pulse Power (tp = 10/1000碌s)
Voidless hermetically sealed glass package
Metallurgically bonded
High surge capacity
Unidirectional
Available in
JTX,
and
JTXV
versions per
MIL-S-19500/551
MECHANICAL CHARACTERISTICS:
鈥?/div>
鈥?/div>
鈥?/div>
Hermetically sealed glass package
Tinned copper leads
Marking : P/N, date code, logo, & cathode band
APPLICATIONS:
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Aerospace & Industrial Electronics
Board Level Protection
Airborne Systems
Shipboard Systems
Ground Systems
MAXIMUM RATINGS
RATING
Peak Pulse Power (tp = 10 x 1000碌s)
Operating Temperature
Storage Temperature
Steady-State Power Dissipation @ TL = 75潞C (3/8鈥?
SYMBOL
Ppk
Tj
Tstg
PD
VALUE
500
-65 to +175
-65 to +175
3
UNIT
Watts
擄C
擄C
Watts
ELECTRICAL CHARACTERISTICS @ 25擄C (unless otherwise specified)
DEVICE
TYPE
REVERSE
STAND-OFF
VOLTAGE
VRWM
REVERSE
LEAKAGE
CURRENT
I
R
MINIMUM
BREAKDOWN
VOLTAGE
VBR @ IT
TEST
CURRENT
I
T
MAXIMUM
CLAMPING
VOLTAGE
Vc @ Ipp
PEAK PULSE
CURRENT
Ipp
Tp = 1mS
PEAK PULSE
CURRENT
Ipp
Tp = 20
碌
S
TEMPERATURE
COEFFICIENT
OF VBR
偽Vz
(V)
1N6461
1N6462
1N6463
1N6464
1N6465
1N6466
1N6467
1N6468
5
6
12
15
24
30.5
40.3
51.6
(碌A(chǔ))
3000
2500
500
500
50
3
2
2
(V)
5.6
6.5
13.6
16.4
27.0
33.0
43.7
54.0
(mA)
25
20
5
5
2
1
1
1
(V)
9.0
11.0
22.6
26.5
41.4
47.5
63.5
78.5
(A)
56
46
22
19
12
11
8
6
(A)
315
258
125
107
69
63
45
35
% /擄C
0.040
0.040
0.050
0.060
0.084
0.093
0.094
0.096

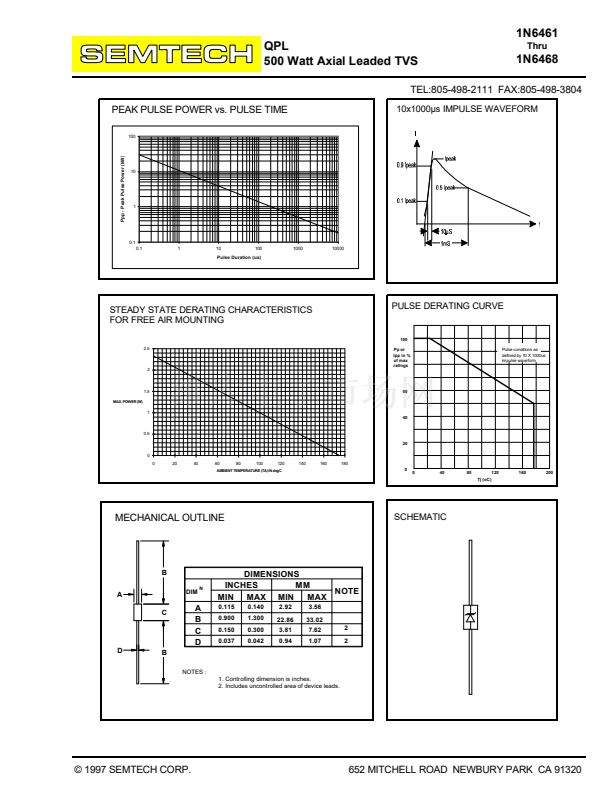

漏 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
