MOTOROLA
SEMICONDUCTOR
TECHNICAL DATA
1500 Watt MOSORB
GENERAL DATA APPLICABLE TO ALL SERIES IN
THIS GROUP
1N6373A
SERIES
1500 WATT
PEAK POWER
MOSORB
ZENER OVERVOLTAGE
TRANSIENT
SUPPRESSORS
6.2鈥?50 VOLTS
1500 WATT PEAK POWER
5 WATTS STEADY STATE
Zener Transient Voltage Suppressors
Unidirectional and Bidirectional
Mosorb devices are designed to protect voltage sensitive components from high volt-
age, high energy transients. They have excellent clamping capability, high surge capabili-
ty, low zener impedance and fast response time. These devices are Motorola鈥檚 exclusive,
cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use
in communication systems, numerical controls, process controls, medical equipment,
business machines, power supplies and many other industrial/consumer applications, to
protect CMOS, MOS and Bipolar integrated circuits.
Specification Features:
鈥?/div>
Standard Voltage Range 鈥?6.2 to 250 V
鈥?/div>
Peak Power 鈥?1500 Watts @ 1 ms
鈥?/div>
Maximum Clamp Voltage @ Peak Pulse Current
鈥?/div>
Low Leakage < 5
碌A(chǔ)
Above 10 V
鈥?/div>

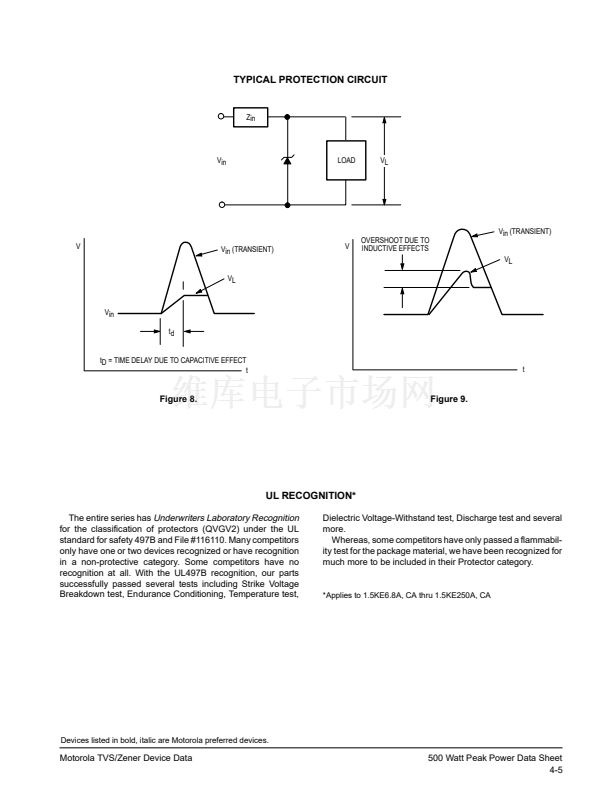

UL Recognition
鈥?/div>
Response Time is Typically < 1 ns
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are readily solderable
POLARITY:
Cathode indicated by polarity band. When operated in zener mode, will be
positive with respect to anode
MOUNTING POSITION:
Any
WAFER FAB LOCATION:
Phoenix, Arizona
ASSEMBLY/TEST LOCATION:
Guadalajara, Mexico
MAXIMUM RATINGS
Rating
Peak Power Dissipation (1)
@ TL
鈮?/div>
25擄C
Steady State Power Dissipation
@ TL
鈮?/div>
75擄C, Lead Length = 3/8鈥?/div>
Derated above TL = 75擄C
Forward Surge Current (2)
@ TA = 25擄C
Operating and Storage Temperature Range
Lead temperature not less than 1/16鈥?from the case for 10 seconds: 230擄C

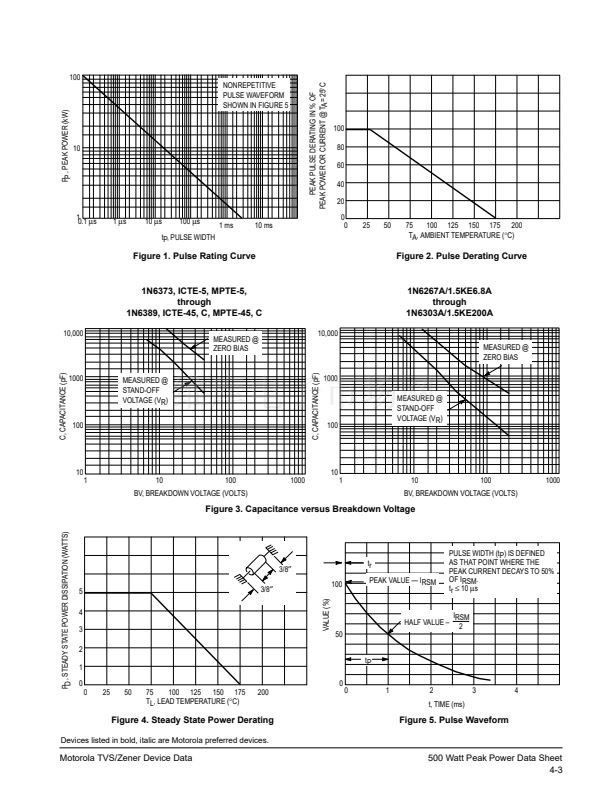

NOTES: 1. Nonrepetitive current pulse per Figure 5 and derated above TA = 25擄C per Figure 2.
NOTES:
2. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.

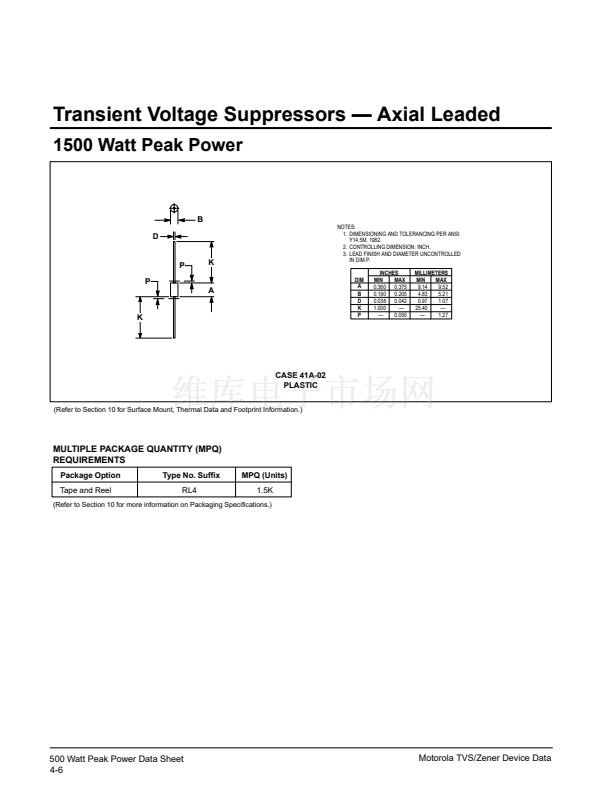

CASE 41A
PLASTIC
Symbol
PPK
PD
Value
1500
5
50
Unit
Watts
Watts
mW/擄C
Amps
擄C
IFSM
TJ, Tstg
200
鈥?65 to +175
Devices listed in bold, italic are Motorola preferred devices.
Motorola TVS/Zener Device Data
500 Watt Peak Power Data Sheet
4-1
