R.1.072099
1516-35
35 WATT, 28V, Pulsed
Microwave 1450 - 1550 MHz
Proposed Product
GENERAL DESCRIPTION
The
1516-35
is a common base transistor capable of providing 35 Watts of
Class C, RF output power over the band 1450-1550 MHz. This transistor is
designed for Microwave Broadband Class C amplifier applications. It includes
Input and Output prematching and utilizes gold metalization and diffused
ballasting to provide high reliability and supreme ruggedness. The transistor
uses a fully hermetic High Temperature solder sealed package.

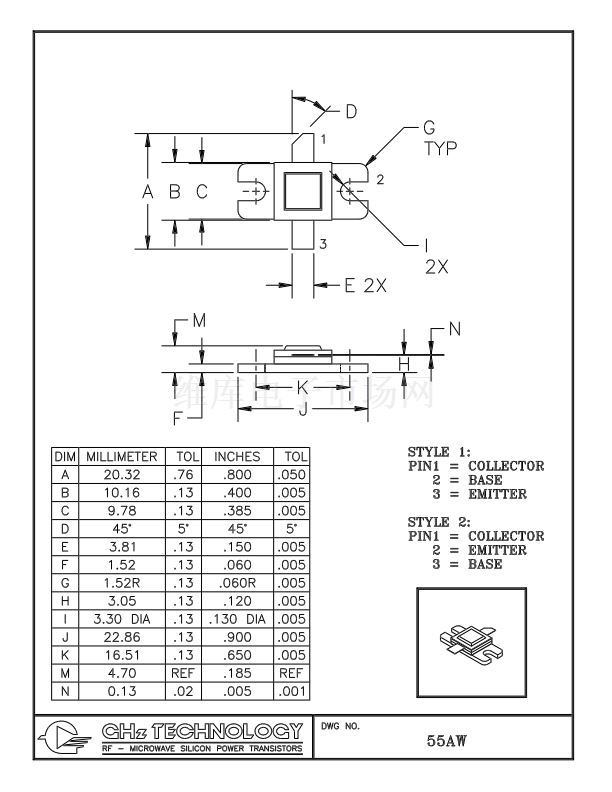

CASE OUTLINE
55AW, Style 1
ABSOLUTE MAXIMUM RATINGS
Maximum Power Dissipation @25
!
C
135 W
Maximum Voltage and Current
45V
BV
CES
Collector to Emitter Voltage
BV
EBO
Emitter to Base Voltage
3.5V
I
C
Collector Current
12A
Temperatures
Storage Temperature
-65 to +200!C
Operating Junction Temperature
+200!C
ELECTRICAL CHARACTERISTICS @ 25!C
!
SYMBOL
P
OUT
P
IN
Pg
"
C
VSWR
CHARACTERISTICS
Power out
Power input
Power Gain
Collector Efficiency
Load Mismatch Tolerance
TEST
CONDITIONS
F = 1450-1550
V
CB
= 28 Volts
P
IN
= 7 Watts
As Above
F = 1.45 GHz, P
IN
= 7 W
MIN
35
TYP
MAX
UNITS
W
W
dB
%
7
7.0
40
10:1
BV
CES
BV
EBO
h
FE
C
OB
*
#jc
Collector to Emitter Breakdown
Emitter to Base Breakdown
Current Gain
Output Capacitance
Thermal Resistance
I
C
= 20mA
Ie = 15mA
V
CE
= 5V, I
C
= 1A
F = 1MHz, V
CB
= 28V
45
3.5
10
V
V
100
1.3
O
pF
C/W
*Not measurable due to output match
Issued July 1999
GHz TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. TO VERIFY THE CURRENT VERSION
PLEASE CHECK OUR WEB SITE AT
WWW.GHZ.COM
OR CONTACT OUR FACTORY DIRECT.
GHz Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120
