Models 12, 13 Medium Pressure
Medical Instrumentation
PC Board Mountable Pressure Sensor
0-100 mV Output
Gage and Absolute Pressure
Temperature Compensated
HVAC
Barometric Pressure
Process Control
Vacuum Measurement
Air Flow Management
DESCRIPTION
The Models 12 and 13 are temperature compensated,
piezoresistive silicon pressure sensors packaged in TO-8
configurations. They provide excellent performance and long-
term stability.
Gage and absolute pressure ranges from 0-2 PSI to 0-250
PSI are available. Integral temperature compensation is
provided over a range of 0-50擄C using laser-trimmed resistors.
An additional laser-trimmed resistor is included in the Model 13
to normalize pressure sensitivity variations by programming the
gain of an external differential amplifier. This provides
sensitivity interchangeability of 鹵1%.
Please refer to the low pressure section for information on
products with operating pressures less than 0-2 PSI. For an
uncompensated sensor (Model 10) please contact the factory for
FEATURES
TO-8 Package
鹵0.1% Non-linearity
鹵0.5% Temperature Performance
Solid State Reliability
Low Power
additional information.
DIMENSIONS
STANDARD RANGES
Range
0 to 2
0 to 5
0 to 10
0 to 15
0 to 30
0 to 50
0 to 100
0 to 250
psig
psia
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>
鈼?/div>

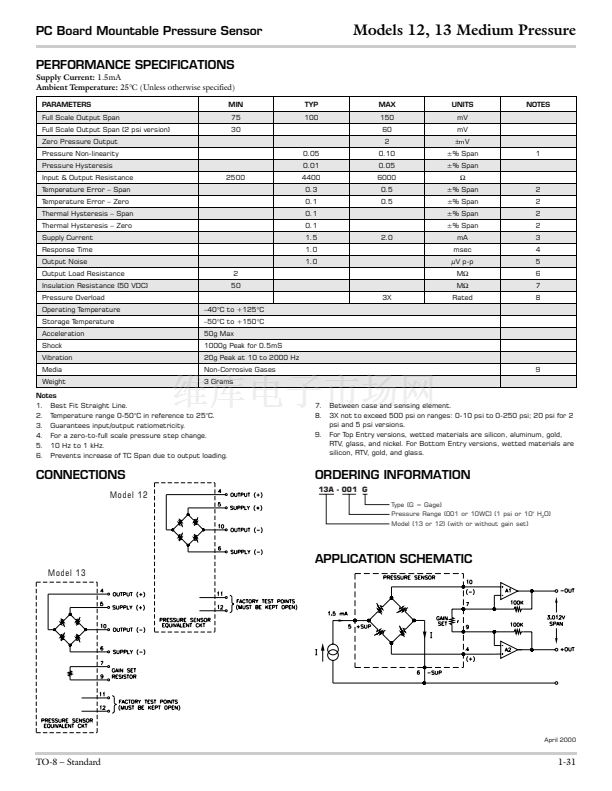

1-30
TO-8 鈥?Standard
