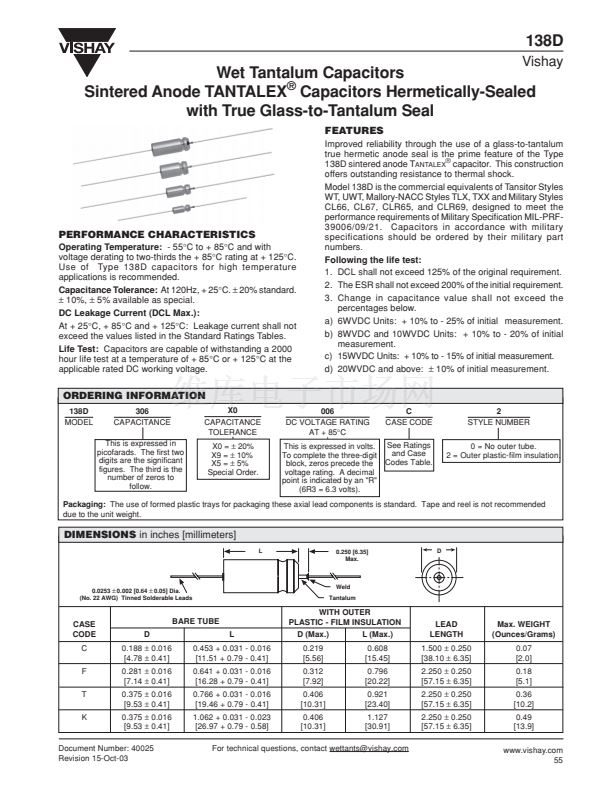

138D
Wet Tantalum Capacitors
Sintered Anode TANTALEX
廬
Capacitors Hermetically-Sealed
with True Glass-to-Tantalum Seal
FEATURES
Improved reliability through the use of a glass-to-tantalum
true hermetic anode seal is the prime feature of the Type
138D sintered anode T
ANTALEX廬
capacitor. This construction
offers outstanding resistance to thermal shock.
Model 138D is the commercial equivalents of Tansitor Styles
WT, UWT, Mallory-NACC Styles TLX, TXX and Military Styles
CL66, CL67, CLR65, and CLR69, designed to meet the
performance requirements of Military Specification MIL-PRF-
39006/09/21. Capacitors in accordance with military
specifications should be ordered by their military part
numbers.
Following the life test:
1. DCL shall not exceed 125% of the original requirement.
2. The ESR shall not exceed 200% of the initial requirement.
3. Change in capacitance value shall not exceed the
percentages below.
a) 6WVDC Units: + 10% to - 25% of initial measurement.
b) 8WVDC and 10WVDC Units: + 10% to - 20% of initial
measurement.
c) 15WVDC Units: + 10% to - 15% of initial measurement.
d) 20WVDC and above:
鹵
10% of initial measurement.
Vishay
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55擄C to + 85擄C and with
voltage derating to two-thirds the + 85擄C rating at + 125擄C.
Use of Type 138D capacitors for high temperature
applications is recommended.
Capacitance Tolerance:
At 120Hz, + 25擄C.
鹵
20% standard.
鹵
10%,
鹵
5% available as special.
DC Leakage Current (DCL Max.):
At + 25擄C, + 85擄C and + 125擄C: Leakage current shall not
exceed the values listed in the Standard Ratings Tables.
Life Test:
Capacitors are capable of withstanding a 2000
hour life test at a temperature of + 85擄C or + 125擄C at the
applicable rated DC working voltage.
ORDERING INFORMATION
138D
MODEL
306
CAPACITANCE
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
X0
CAPACITANCE
TOLERANCE
X0 =
鹵
20%
X9 =
鹵
10%
X5 =
鹵
5%
Special Order.
006
DC VOLTAGE RATING
AT + 85擄C
C
CASE CODE
2
STYLE NUMBER
0 = No outer tube.
2 = Outer plastic-film insulation.
This is expressed in volts. See Ratings
and Case
To complete the three-digit
block, zeros precede the Codes Table.
voltage rating. A decimal
point is indicated by an "R"
(6R3 = 6.3 volts).
Packaging:
The use of formed plastic trays for packaging these axial lead components is standard. Tape and reel is not recommended
due to the unit weight.
DIMENSIONS
in inches [millimeters]
L
0.250 [6.35]
Max.
D
0.0253
鹵
0.002 [0.64
鹵
0.05] Dia.
(No. 22 AWG) Tinned Solderable Leads
Weld
Tantalum
CASE
CODE
C
F
T
K
BARE TUBE
D
0.188
鹵
0.016
[4.78
鹵
0.41]
0.281
鹵
0.016
[7.14
鹵
0.41]
0.375
鹵
0.016
[9.53
鹵
0.41]
0.375
鹵
0.016
[9.53
鹵
0.41]
L
0.453 + 0.031 - 0.016
[11.51 + 0.79 - 0.41]
0.641 + 0.031 - 0.016
[16.28 + 0.79 - 0.41]
0.766 + 0.031 - 0.016
[19.46 + 0.79 - 0.41]
1.062 + 0.031 - 0.023
[26.97 + 0.79 - 0.58]
WITH OUTER
PLASTIC - FILM INSULATION
D (Max.)
L (Max.)
0.219
[5.56]
0.312
[7.92]
0.406
[10.31]
0.406
[10.31]
0.608
[15.45]
0.796
[20.22]
0.921
[23.40]
1.127
[30.91]
LEAD
LENGTH
1.500
鹵
0.250
[38.10
鹵
6.35]
2.250
鹵
0.250
[57.15
鹵
6.35]
2.250
鹵
0.250
[57.15
鹵
6.35]
2.250
鹵
0.250
[57.15
鹵
6.35]
Max. WEIGHT
(Ounces/Grams)
0.07
[2.0]
0.18
[5.1]
0.36
[10.2]
0.49
[13.9]
www.vishay.com
55
Document Number: 40025
Revision 15-Oct-03
