QuickMount Micro GPS Patch Antennas
1307032
1307032
QuickMount Micro GPS Patch Antennas
QuickMount Micro GPS Patch Antennas
with mounting options
Model ANPC-128 - Passive
Model ANPC-131 - Active
Model ANPC-135 - Active
Our QuickMount Micro GPS Patch Antennas are compact, right
hand circularly polarized units ideal for applications where small
size and versatile mounting is a must.
The active ANPC-131 QuickMount combines all thefeatures of
our passive antenna with a low noiseamplifier and filter. The
design provides for DC transient protection on the input and
output sides of the LNA circuit, eliminating the possibility of
surge damage.
QuickMount鈥檚 compact size fits any vehicular or portable re-
ceiver, and the LNA鈥檚 low noise figure actually improves receiver
performance. Strong satellite lock is achieved by the low signal-
to-noise ratio and through rejection of out-of-band interference.
Temporary installation using the suction cup or magnetic mounts
make these antennas excellent choices for fleet management,
small aircraft, and marine navigation applications. Choice of
connector type and cable length. Optional bracket mounts allow
both fixed and temporary installations.
Additional Specifications for Active
Antennas
Filtering:
-25.5 dB Typical @ 鹵 50 MHz
(Model ANPC-131)
-27.0 dB Typical @ 鹵 50 MHz
(Model ANPC-135)
1.5 dB Max
26 dBic 鹵 2 dB (Model ANPC-131)
33 dBic 鹵 2 dB (Model ANPC-135)
+5 VDC 鹵 0.5 VDC @ 30 mA Max.
Zener diode limited
Noise Figure
Gain: *
DC Power:
Voltage Protection:
Specifications for both Passive and Active
Antennas
Frequency:
Antenna Gain: *
VSWR
Temperature:
1575 MHz 鹵 2 MHz
.75 dBic Typical @ zenith
1.5:1 Max (Passive);
1.2:1 Typical 1.5:1 Max (Active)
-40擄 C to +95擄 C
Connector Options
BNC:
Male
SMB:
Jack, Plug or
Right Angle Female
OSX:
Male, Female or
Right Angle Jack
TNC:
Male or Female
N:
Male or Female
SMA:
Male or Female

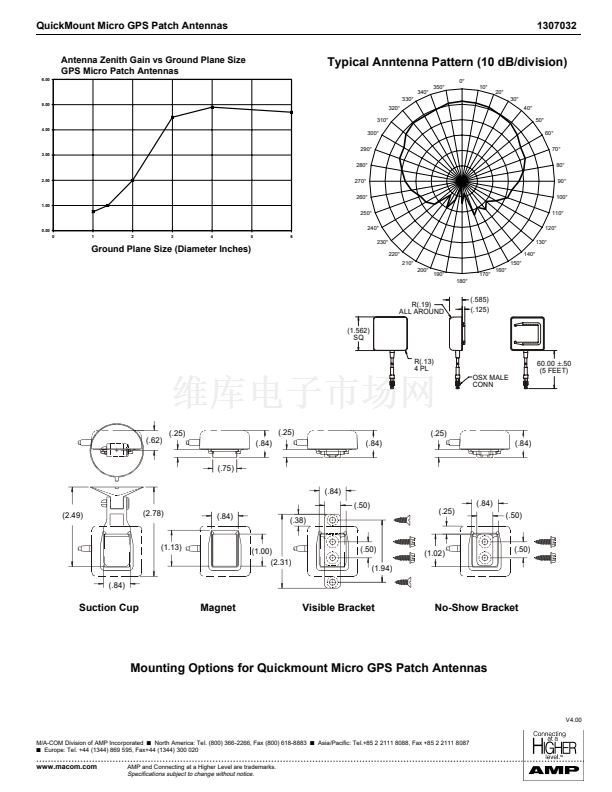

Mounting Options
Magnet Mount
No-Show Bracket
Visible Bracket
Suction Cup
*Note: Cable Loss of approximately .42 dB/ft. not included.
V4.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
